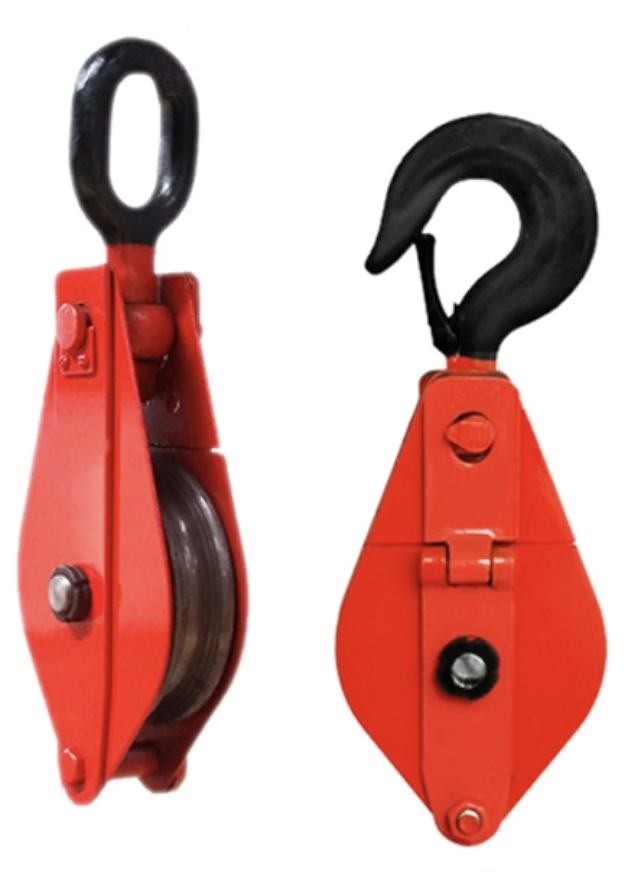

TL051101
TL
Adopts good-quality steel, safe, reliable and durable
Widely used for mines, wharfs, factories, construction sites, warehouses
Forged hooks
TYPE | S.W.L | SHEAVE DIA | DIMENSIONS(mm) | WIRE ROPE DIA | M.D. | ||||
HOOK | EYE | (t) | F2(mm) | HOOK A1 | EYE A2 | B | C | (mm) | (mm) |
1B-63H | 1B-63E | 0.25 | 63 | 208.4 | 202.4 | 68 | 40 | 5 | 10 |
1B-75H | 1B-75E | 0.25 | 75 | 222.4 | 216.4 | 80 | 40 | 6 | 12 |
1B-100H | 1B-100E | 0.5 | 100 | 300.5 | 283.5 | 108 | 48.5 | 8 | 16 |
1B-125H | 1B-125E | 1 | 125 | 346 | 332.5 | 140 | 53.5 | 10 | 20 |
1B-150H | 1B-150E | 1 | 150 | 392 | 378.5 | 168 | 60 | 12 | 24 |
1B-180H | 1B-180E | 1.5 | 180 | 456.7 | 450 | 204 | 81 | 15 | 30 |
1B-200H | 1B-200E | 2 | 200 | 505.8 | 488 | 220 | 91.5 | 16 | 32 |
1B-250H | 1B-250E | 3 | 250 | 642.7 | 627 | 268 | 114 | 20 | 40 |
2B-63H | 2B-63E | 0.25 | 63 | 208.4 | 202.4 | 68 | 63 | 5 | 10 |
2B-75H | 2B-75E | 0.25 | 75 | 222.4 | 216.4 | 80 | 63 | 6 | 12 |
2B-100H | 2B-100E | 0.75 | 100 | 315.4 | 285 | 108 | 76 | 8 | 16 |
2B-125H | 2B-125E | 1 | 125 | 346 | 332.5 | 140 | 86 | 10 | 20 |
2B-150H | 2B-150E | 1.5 | 150 | 412.7 | 400 | 168 | 95 | 12 | 24 |
2B180H | 2B180E | 2 | 180 | 469.8 | 452 | 204 | 125 | 15 | 30 |
2B-200H | 2B-200E | 3 | 200 | 522.8 | 504 | 220 | 144 | 16 | 32 |
2B-250H | 2B-250E | 4 | 250 | 653 | 650 | 268 | 183 | 20 | 40 |
3B-63H | 3B-63E | 0.25 | 63 | 208.4 | 202.4 | 68 | 87 | 5 | 10 |
3B-75H | 3B-75E | 0.25 | 75 | 222.4 | 216.4 | 80 | 87 | 6 | 12 |
3B-100H | 3B-100E | 0.75 | 100 | 315.9 | 285 | 108 | 104 | 8 | 16 |
3B-125H | 3B-125E | 1 | 125 | 346 | 332.5 | 140 | 119 | 10 | 20 |
3B-150H | 3B-150E | 1.5 | 150 | 412.7 | 400 | 168 | 130 | 12 | 24 |
3B-180H | 3B-180E | 2 | 180 | 469.8 | 452 | 204 | 169 | 15 | 30 |
3B-200H | 3B-200E | 4 | 200 | 545.2 | 529.5 | 220 | 196 | 16 | 32 |
3B-250H | 3B-250E | 5 | 250 | 688.5 | 671 | 268 | 253 | 20 | 40 |
1S-63H | 1S-63E | 0.25 | 63 | 208.4 | 202.4 | 68 | 40 | 5 | 10 |
1S-75H | 1S-75E | 0.25 | 75 | 222.4 | 216.4 | 80 | 40 | 6 | 12 |
1S-100H | 1S-100E | 0.5 | 100 | 300.5 | 283.5 | 108 | 58.5 | 8 | 16 |
1S-125H | 1S-125E | 1 | 125 | 361 | 347.5 | 140 | 62.5 | 10 | 20 |
1S-150H | 1S-150E | 1 | 150 | 392 | 378.5 | 168 | 70 | 12 | 24 |
1S-180H | 1S-180E | 1.5 | 180 | 456.7 | 450 | 204 | 81 | 15 | 30 |
1S-200H | 1S-200E | 2 | 20 | 505.8 | 488 | 220 | 91.5 | 16 | 32 |
1S-250H | 1S-250E | 3.5 | 250 | 642.7 | 627 | 268 | 114 | 20 | 40 |
