TL092021
TL

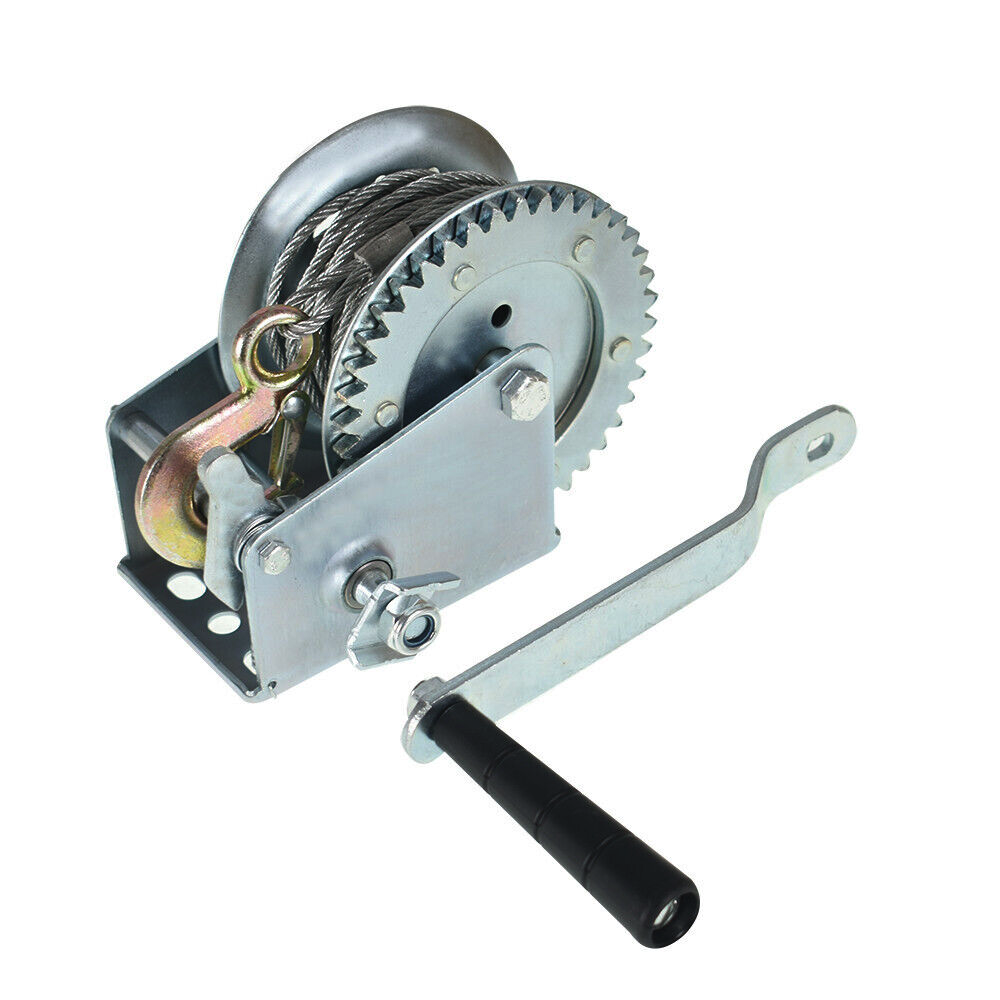

Crank Gear Winch with Wire Rope
▲Hand winches with or without cable / webbing;
| WLL(KG) | B/S(KG) | Cable Specification | Gear Ratio | Way/Speed | N.G | QTY/CNT |
| 220 | 340 | 3mmx8m | 4.1:1 | 1 way/1 speed | 27 | 12 |
| 250 | 375 | 4mmx10m | 3.2:1 | 1 way/1 speed | 30 | 12 |
| 350 | 525 | 4.2mmx10m | 3.2:1 | 1 way/1 speed | 30 | 12 |
| 450 | 675 | 4mmx10m | 4.1:1 | 2 way/1 speed | 27 | 8 |
| 550 | 825 | 4.5mmx10m | 4.1:1 | 2 way/1 speed | 29 | 8 |
| 600 | 900 | 4.8mmx10m | 4:1 | 2 way/1 speed | 31 | 8 |
| 700 | 1050 | 5mmx10m | 4:1 | 2 way/1 speed | 32 | 8 |
| 800 | 1200 | 5mmx10m | 4:1/8:1 | 2 way/2 speed | 27 | 6 |
| 900 | 1350 | 5mmx10m | 4:1/8:1 | 2 way/2 speed | 27 | 6 |
| 1100 | 1650 | 5.5mmx10m | 4:1/8:1 | 2 way/2 spped | 29 | 6 |
| 1365 | 2045 | 5.5mmx10m | 4:1/8:1 | 2 way/2 speed | 32 | 6 |
| 1600 | 2390 | 6mmx10m | 4:1/8:1 | 2 way/2 speed | 34 | 6 |
Features:
BUILT TO LAST:
4:1 gear ratio; Constructed from high carbon steel with a zinc-plated finish for maximum strength and longevity that resists rust and corrosion; Anti-slip handle ensures a tight grip for less user fatigue and more productivity while cranking the manual winch
EASY TO USE:
Forward and reverse ratcheting single-speed gear on this hand cable winch with a lock that can be set to work in either direction or can be disengaged if required (not recommended); While changing ratchet direction, hold the winch handle to take the load/strain off the ratchet mechanism and ensure safety
