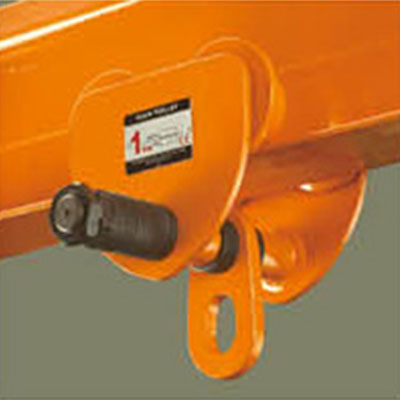

TL032001
TL
.Suitable for manual, electric and pneumatic hoists
.Very simple,virtually infinite adaptation to various beam flange widths
.Adjustable for wide range of beams and different profiles(INP,IPE,IPB)
RATED LOAD(T) | TEST LOAD(T) | I-BEAM | A | B | C | D | F | H | J | K | L | M | W. |
0.5 | 0.75 | 75-125 | 108 | 172 | 190 | 230 | 94 | 78 | 57 | 37 | 14 | 24 | 5.5 |
1 | 1.5 | 75-125 | 123 | 178 | 209 | 260 | 120 | 84 | 60 | 40 | 16 | 28 | 8 |
2 | 3 | 100-150 | 133 | 220 | 239 | 300 | 136 | 102 | 75 | 44 | 17 | 34 | 13 |
3 | 4.5 | 100-150 | 162 | 254 | 289 | 320 | 150 | 120 | 90 | 60 | 17 | 34 | 18 |
5 | 7.5 | 125-175 | 177 | 303 | 295 | 320 | 169 | 141 | 110 | 65 | 22 | 40 | 31 |
10 | 15 | 125-180 | 237 | 387 | 437 | 370 | 198 | 189 | 150 | 90 | 27 | 57 | 76 |
.Suitable for manual, electric and pneumatic hoists
.Very simple,virtually infinite adaptation to various beam flange widths
.Adjustable for wide range of beams and different profiles(INP,IPE,IPB)
RATED LOAD(T) | TEST LOAD(T) | I-BEAM | A | B | C | D | F | H | J | K | L | M | W. |
0.5 | 0.75 | 75-125 | 108 | 172 | 190 | 230 | 94 | 78 | 57 | 37 | 14 | 24 | 5.5 |
1 | 1.5 | 75-125 | 123 | 178 | 209 | 260 | 120 | 84 | 60 | 40 | 16 | 28 | 8 |
2 | 3 | 100-150 | 133 | 220 | 239 | 300 | 136 | 102 | 75 | 44 | 17 | 34 | 13 |
3 | 4.5 | 100-150 | 162 | 254 | 289 | 320 | 150 | 120 | 90 | 60 | 17 | 34 | 18 |
5 | 7.5 | 125-175 | 177 | 303 | 295 | 320 | 169 | 141 | 110 | 65 | 22 | 40 | 31 |
10 | 15 | 125-180 | 237 | 387 | 437 | 370 | 198 | 189 | 150 | 90 | 27 | 57 | 76 |
