TL031021
TL

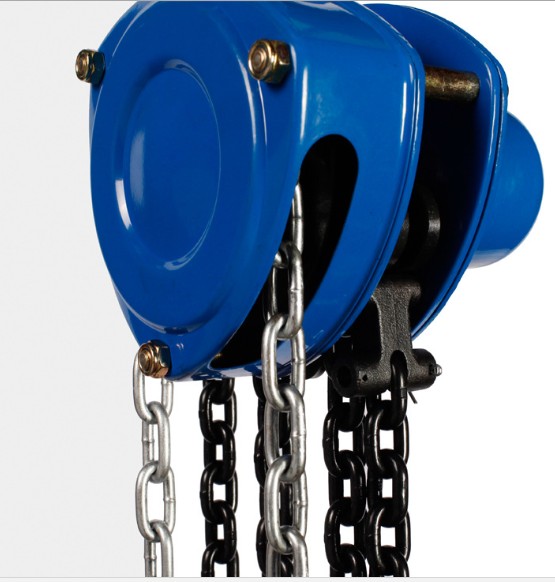

Manual Hoist Chain Pulley Block with Safety Latch Hooks
.Highly Shock-resistant housing, fully encapsulated against moisture and dust
.Forged hooks with reinforced safety latch
.Main axle with ball bearing to minimze effort
.Precision gear for long working life
.All unpainted parts with high-grade corrosion protection
.Low-Wear sintered brake linings
.Housing with high quality powder coating
.Extensive spare parts and maintenance service
.Mechanical load brake for positive load control.
.Designed to provide safe, easy and efficient lifting operations.
Rugged hand-operated hoist has lubricated roller bearings and bushings, bearing-mounted pinions, and heat-treated spur gearing to smoothly and safely move loads.
| RATED LOAD(T) | STANDARD LIFT(M) | TEST LOAD (T) | EFFORTS REQUIRED AT CAPACITY(N) | DIAMETER OF THE LOAD CHAIN(MM) | NO.OF LOAD CHAINS | DIMENSIONS(MM) | N.W | |||||||
| A | B | C | D | S | T | U | V | KG | ||||||
| 0.5 | 2.5 | 0.75 | 262 | 5 | 1 | 135 | 124 | 288 | 20 | 30 | 11.5 | 18 | 65 | 7 |
| 1 | 2.5 | 1.5 | 304 | 6 | 1 | 160 | 137 | 334 | 25 | 37 | 18.5 | 22 | 78 | 10.5 |
| 1.5 | 2.5 | 2.25 | 395 | 8 | 1 | 195 | 143 | 415 | 35 | 45 | 19 | 26 | 97 | 15.5 |
| 2 | 2.5 | 3 | 330 | 6 | 2 | 160 | 137 | 459 | 35 | 48 | 23 | 29 | 103 | 17 |
| 3 | 3 | 4.5 | 402 | 8 | 2 | 195 | 143 | 536 | 36 | 50 | 27 | 38 | 123 | 23 |
| 5 | 3 | 7.5 | 415 | 10 | 2 | 255 | 173 | 660 | 46 | 65 | 30 | 41 | 150 | 39 |
| 10 | 3 | 12.5 | 428 | 10 | 4 | 395 | 173 | 738 | 55 | 80 | 40 | 61 | 215 | 69 |
| 20 | 3 | 25 | 428X2 | 10 | 8 | 650 | 195 | 1002 | 80 | 105 | 60 | 92 | 285 | 162 |
| 30 | 3 | 37.5 | 442X2 | 10 | 10 | 710 | 398 | 1050 | 82 | 105 | 65 | 98 | 285 | 237 |
