TL031011
TL
The Mini Aluminium Lever Hand Hoist is a very compact hand hoist which guarantees an ultra light weight.
The mini manual hoist has a very light weight and is easy to handle, requiring very little leverage due to the rolling operation. This hoist is mainly used in industry and maintenance. The manual hoist has an anti-corrosion treatment of the unpainted parts. The zinc-plated load chain complies with EN817/7 and the zinc-plated operating chain complies with DIN 766.
Mini Lever hoist features
.Extended application range due to wide hook opening
.Easy handling with low physical effort on the lever
.Fully protected mechanism for low maintenance ost
.Easy adjustment by free-wheeling position
Lightweight and very compact design makes this hoist easy-to-use in very confined working conditions. Features drop-forged and heat treated pinion gear with totally enclosed mechanism. Hooks are fitted with safety catches and rotate 360. Free-chaining feature permits slack in the load chain to be taken up by hand before engaging the ratchet arm. Fitted with high quality durable alloy steel chain.
Mini Lever hoist capacity
| WLL(T) | LIFT(M) | TEST LOAD (T) | HEADROON(HOOK TO HOOK) Hmin (mm) | EFFOR TO LIFT FULL LOAD(KG) | NO.OF LOAD CHAINS | LOAD CHAIN(MM) | DIMENSION(MM) | NET WEIGHT | |||||||
| A | B | C | D | E | E1 | ɸ | H min | KG | |||||||
| 0.25 | 1 | 0.375 | 215 | 13 | 1 | 4X12 | 75 | 116 | 41 | 157 | 18 | 15.5 | 25 | 215 | 0.35 |
| 0.5 | 1.5 | 0.75 | 255 | 18.5 | 1 | 5X15 | 90 | 135 | 51.5 | 180 | 24 | 21 | 32 | 255 | 0.55 |

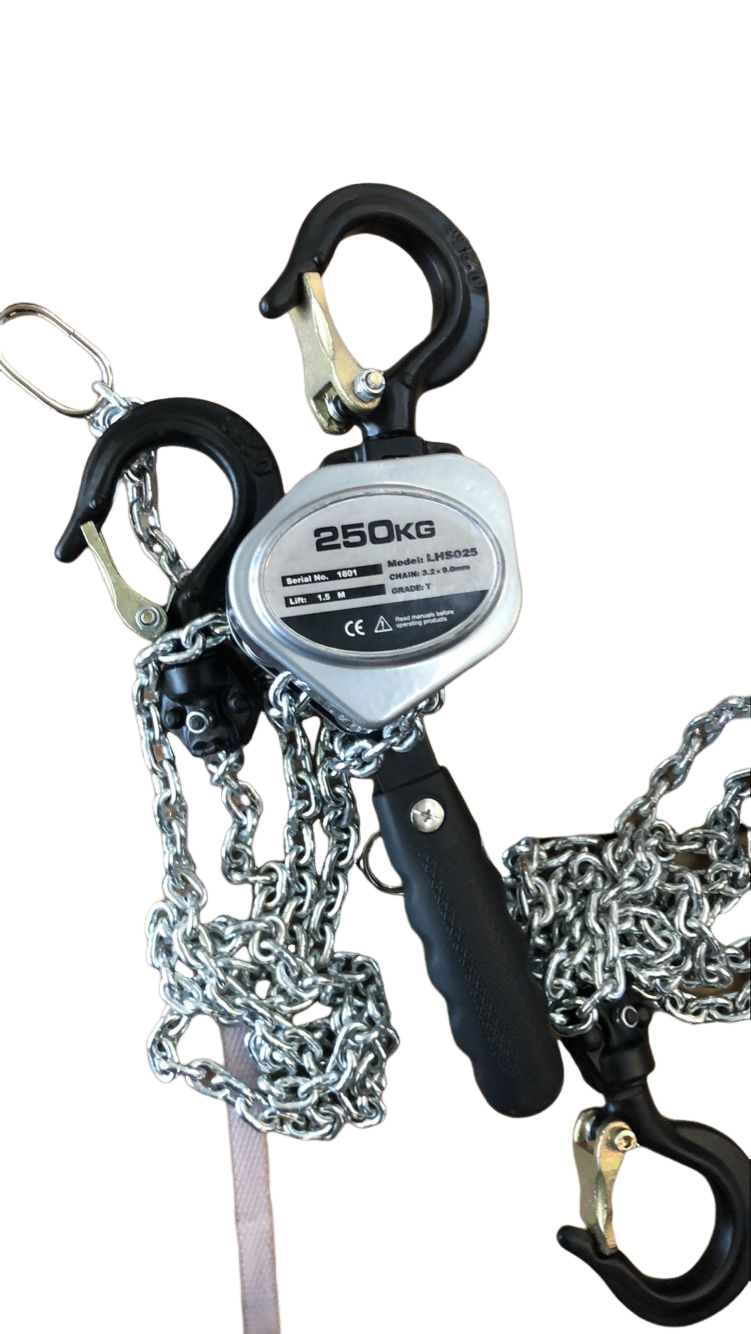

Mini lever hoist details
Advantages of Mini Lever Hoists
Mini lever hoists offer several advantages due to their compact size and versatile design.
Compact and Portable
Limited Clearance
Precise Control
Ease to Use
Durability
No power source required
Low Maintenance
Flexible load Handing
Rapid lifting
Operating Mini lever hoists
Prioritize safety and refer to the user manual for specific guidelines.
