TL061061
TL

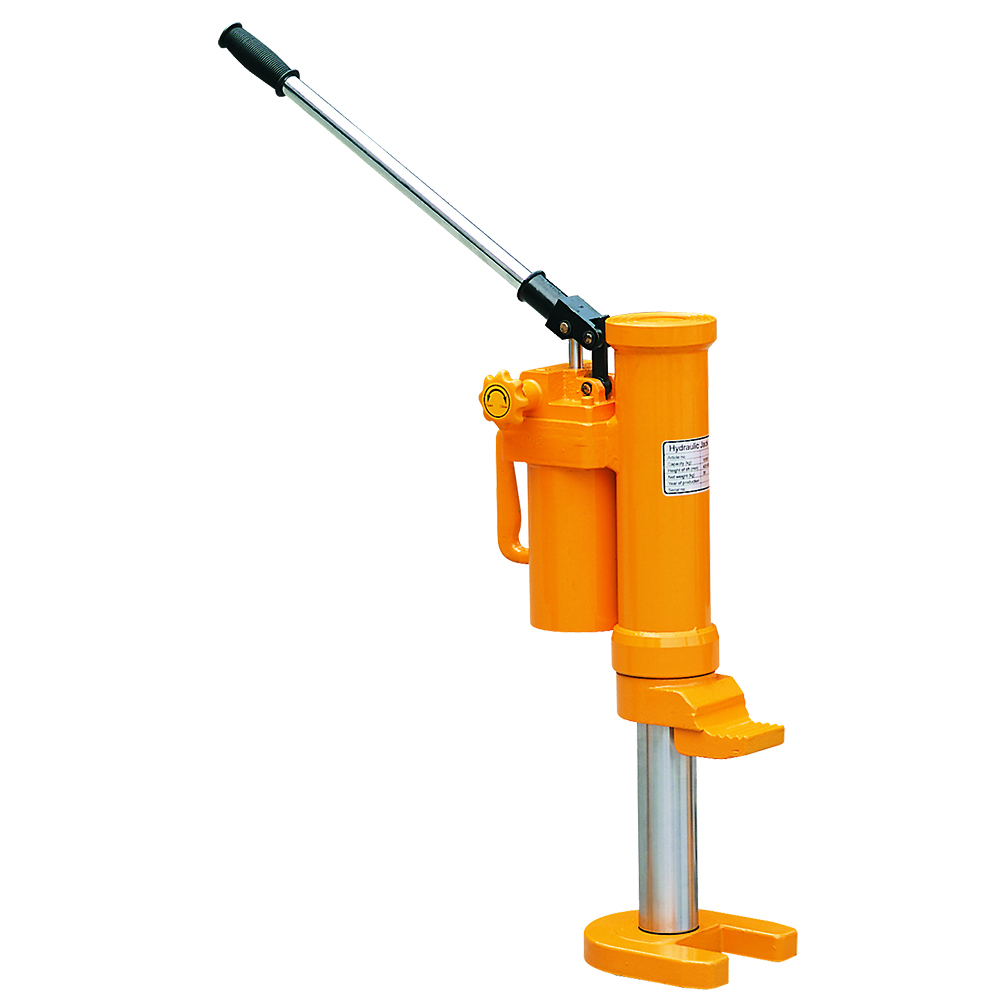

This hydraulic machine lifter is used for maintenance, repair and installation of heavy machinery.
Heavy-duty design &industrial quality
Compact and stable construction
Housing revolves 360 degrees
Safety valve for overload protection
Lowering speed can be accurately adjusted
Convenient swivel socket for easy operation in any direction
Forge base to assure strength
Meet ANSI/ASME PALD standards &CE/GS
Application diagram
| Capacity(T) | Toe Lifting Height(mm) | Top Lifting Height(mm) | N.W(KG) |
| 5 | 25-230 | 368-573 | 25 |
| 10 | 30-260 | 420-650 | 35 |
| 25 | 58-273 | 505-720 | 102 |
This hydraulic machine lifter is used for maintenance, repair and installation of heavy machinery.
Heavy-duty design &industrial quality
Compact and stable construction
Housing revolves 360 degrees
Safety valve for overload protection
Lowering speed can be accurately adjusted
Convenient swivel socket for easy operation in any direction
Forge base to assure strength
Meet ANSI/ASME PALD standards &CE/GS
Application diagram
| Capacity(T) | Toe Lifting Height(mm) | Top Lifting Height(mm) | N.W(KG) |
| 5 | 25-230 | 368-573 | 25 |
| 10 | 30-260 | 420-650 | 35 |
| 25 | 58-273 | 505-720 | 102 |
