Feature:
Body are made of premium metal material for durable and long-lasting use. It's easy to use with long service life
Long telescopic single ram gives a higher maximum lift than the standard range, while keeping the same compact closed height

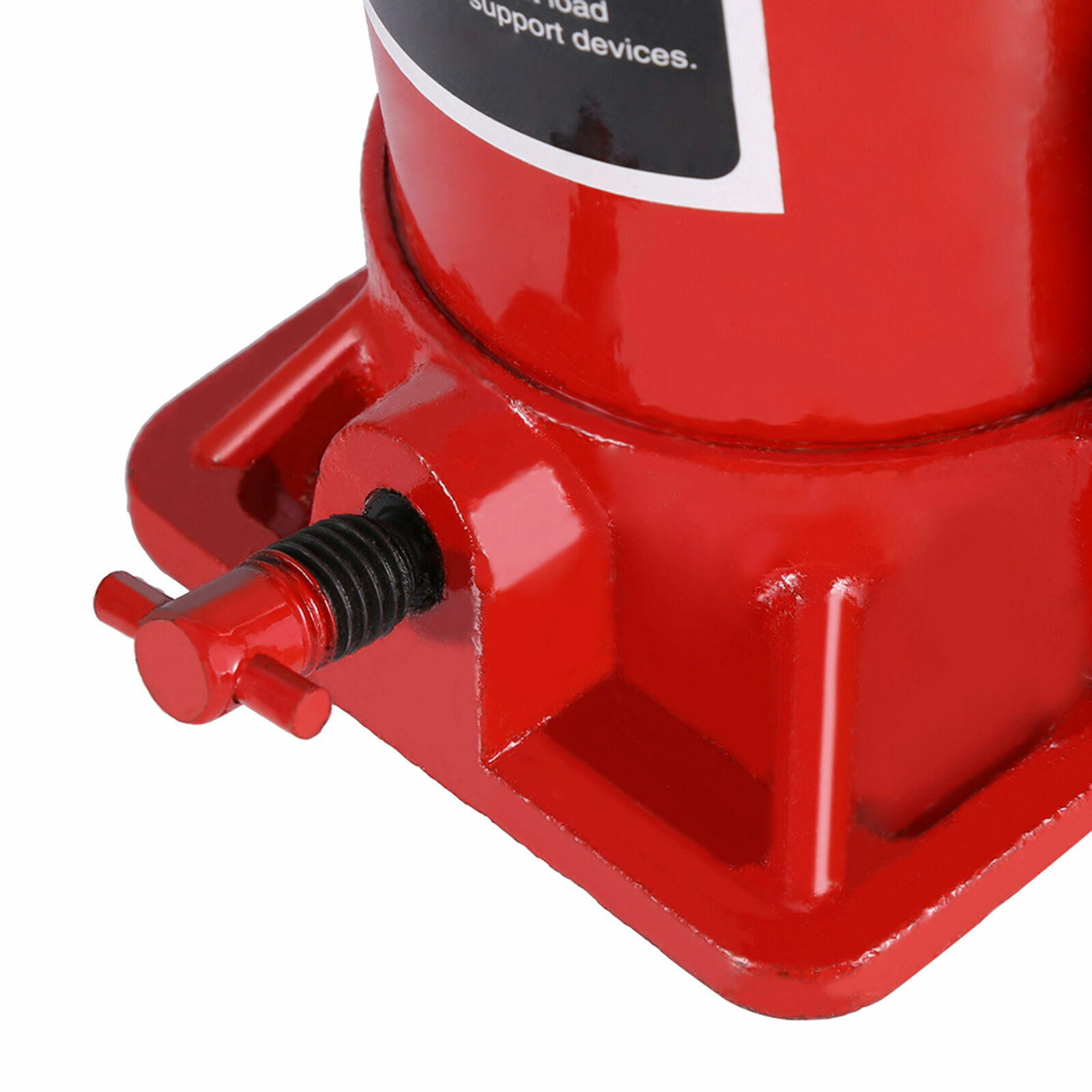

Compact structure with easy and simple operation. Hydraulic oil tank, Valve release for auto descend. Cast base with threaded components for easy disassembly if required
Adjustable screw up height adjustment allows you to set a suitable starting height.
Item No. | Capacity(tong) | Min Height (mm) | Lifting Height(mm) | Adjusting Height (mm) | Base Plate Length and Width(mm) | N.W. (kg) |
TL061001 | 2 | 181 | 116 | 48 | 88*92 | 2.7 |
TL061002 | 3 | 194 | 118 | 60 | 92*100 | 3.3 |
TL061003 | 5 | 216 | 127 | 70 | 96*100 | 4.5 |
TL061004 | 8 | 230 | 147 | 80 | 103*118 | 6 |
TL061005 | 10 | 230 | 150 | 80 | 110*123 | 6.6 |
TL061006 | 12 | 230 | 155 | 80 | 116*134 | 7.8 |
TL061007 | 15 | 230 | 150 | 80 | 133*136 | 8.6 |
TL061008 | 20 | 242 | 150 | 80 | 144*150 | 11 |
TL061009 | 32 | 285 | 150 | / | 190*155 | 21 |
TL061010 | 50 | 300 | 150 | / | 218*176 | 30 |
Feature:
Body are made of premium metal material for durable and long-lasting use. It's easy to use with long service life
Long telescopic single ram gives a higher maximum lift than the standard range, while keeping the same compact closed height
Compact structure with easy and simple operation. Hydraulic oil tank, Valve release for auto descend. Cast base with threaded components for easy disassembly if required
Adjustable screw up height adjustment allows you to set a suitable starting height.
Item No. | Capacity(tong) | Min Height (mm) | Lifting Height(mm) | Adjusting Height (mm) | Base Plate Length and Width(mm) | N.W. (kg) |
TL061001 | 2 | 181 | 116 | 48 | 88*92 | 2.7 |
TL061002 | 3 | 194 | 118 | 60 | 92*100 | 3.3 |
TL061003 | 5 | 216 | 127 | 70 | 96*100 | 4.5 |
TL061004 | 8 | 230 | 147 | 80 | 103*118 | 6 |
TL061005 | 10 | 230 | 150 | 80 | 110*123 | 6.6 |
TL061006 | 12 | 230 | 155 | 80 | 116*134 | 7.8 |
TL061007 | 15 | 230 | 150 | 80 | 133*136 | 8.6 |
TL061008 | 20 | 242 | 150 | 80 | 144*150 | 11 |
TL061009 | 32 | 285 | 150 | / | 190*155 | 21 |
TL061010 | 50 | 300 | 150 | / | 218*176 | 30 |
