TL025061
TL

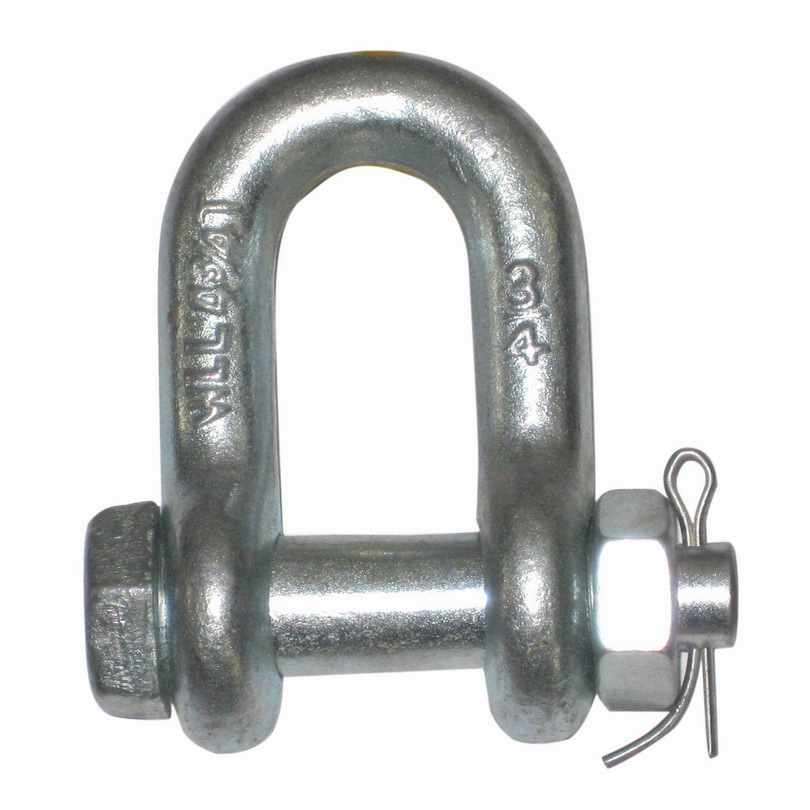

G2150 shackle Feature
【Theatrical Round body】: bolt type
【Durability】: shackle meets or exceeds the requirements of G2150 which include identification, durability, design factor, proof load and temperature requirements.
【Material】: 45# steel, Body and Bolt are plastic powder coated for rust prevention. Heavy duty and weather-resistant can withstand harsh weather conditions.
【Universal Design】:-Shackle for jeep, ATV, truck, trailer and sport utility vehicle, works well with tow straps, snatch straps, tree savers, snatch block and industrial lifting
【Many Uses】:Connects loose ends of cables, chains, straps and snatch blocks; Works perfectly with all our tow straps, snatch straps, tree savers and snatch blocks. Great for cars and other applications for tie downs, towing and recovery.
Bolt Type Chain Shackle Use Instruction
Never Exceed 120º included angle. Use bolt Type and Screw Pin shackle only. Shackles symmetrically loaded with two legs slings having a maximum included angle of 120º can be untilized to full working load limit.
Chain Shackle diamension chart
| Size | WLL | A | B | C | D | E | F | G | H | I | Weight |
| (in) | (T) | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
| 1/4 | 0.5 | 11.9 | 7.85 | 6.35 | 15.5 | 19.1 | 40.4 | 24.6 | 39.6 | 6.35 | 0.06 |
| 5/16 | 0.75 | 13.5 | 9.65 | 7.85 | 19.1 | 25.4 | 48.5 | 29.5 | 46.2 | 7.85 | 0.1 |
| 3/8 | 1 | 16.8 | 11.2 | 9.65 | 23.1 | 31 | 58.5 | 35.8 | 55 | 9.65 | 0.15 |
| 7/16 | 1.5 | 19.1 | 12.7 | 11.2 | 26.9 | 36.1 | 67.5 | 41.1 | 63.5 | 11.2 | 0.22 |
| 1/2 | 2 | 20.6 | 16 | 12.7 | 30.2 | 41.4 | 77 | 46 | 71 | 12.7 | 0.34 |
| 5/8 | 3.25 | 26.9 | 19.1 | 16 | 38.1 | 51 | 95.5 | 58.5 | 89.5 | 16 | 0.67 |
| 3/4 | 4.75 | 31.8 | 22.4 | 19.1 | 46 | 60.5 | 115 | 70 | 103 | 20.6 | 1.14 |
| 7/8 | 6.5 | 36.6 | 25.4 | 22.4 | 53 | 71.5 | 135 | 81 | 120 | 24.6 | 1.74 |
| 1 | 8.5 | 42.9 | 28.7 | 25.4 | 60.5 | 81 | 151 | 93.5 | 135 | 25.4 | 2.52 |
| 1-1/8 | 9.5 | 46 | 31.8 | 28.7 | 68.5 | 91 | 172 | 103 | 150 | 31.8 | 3.45 |
| 1-1/4 | 12 | 51.5 | 35.1 | 31.8 | 76 | 100 | 191 | 115 | 165 | 35.1 | 4.9 |
| 1-3/8 | 13.5 | 57 | 38.1 | 35.1 | 84 | 111 | 210 | 127 | 183 | 38.1 | 6.24 |
| 1-1/2 | 17 | 60.5 | 41.4 | 38.1 | 92 | 122 | 230 | 137 | 196 | 41.1 | 8.39 |
| 1-3/4 | 25 | 73 | 51 | 44.5 | 106 | 146 | 279 | 162 | 230 | 54 | 14.2 |
| 2 | 35 | 82.5 | 57 | 51 | 122 | 172 | 312 | 184 | 264 | 51 | 21.2 |
| 2-1/2 | 55 | 105 | 70 | 66.5 | 145 | 203 | 377 | 238 | 344 | 66.5 | 38.6 |
