TL025041
TL

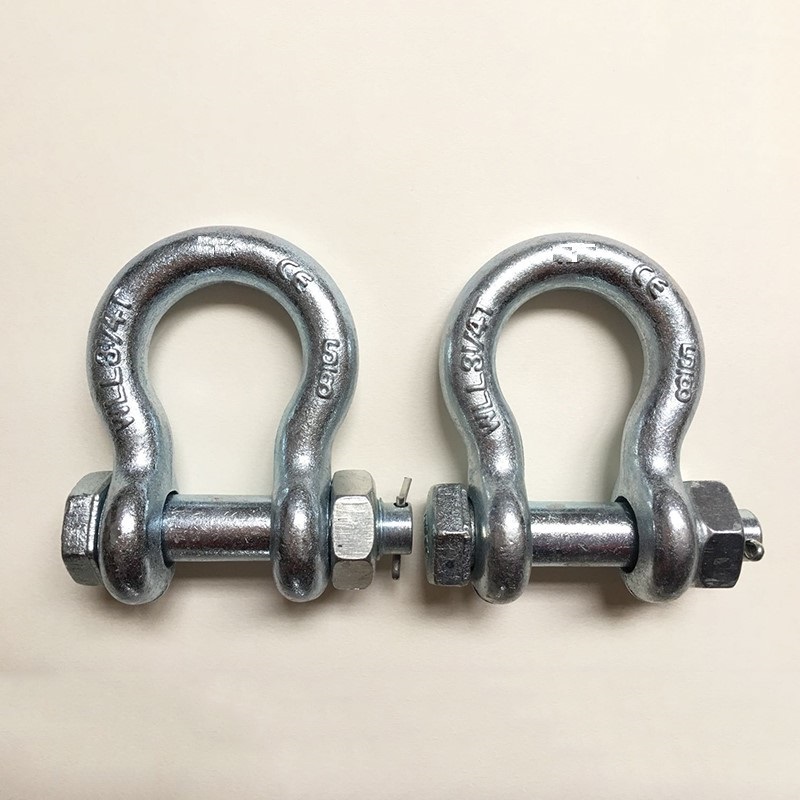

G2130 bow shackles are forged from high-grade alloy steel, ensuring exceptional strength to handle the toughest loads. With their robust construction and excellent load-bearing capacity, these shackles are perfect for a wide range of applications
Universal design: D ring shackle ideal for jeep, ATV, truck, trailer and sport utility vehicle, workes well with tow straps, snatch straps, tree savers, snatch blocks, industrial lifting.
G2130 bow shackle with bolt Features
1. High Strength: maximum strength, allowing it to handle heavy loads with ease.
2. Safety Pin: Safety pin design that ensures secure and reliable connections, minimizing the risk of accidental release.
3. Corrosion Resistance: protective finish that enhances their resistance to corrossion, extending their lifespan and reliablity.
4. Versatility: These shackles can be used in various industries, including marine, construction, mining and transportation etc.
Bolt type Anchor shackle Use instruction
Shackle size chart
| Size | WLL | A | B | C | D | E | F | G | H | I | Weight |
| (in) | (T) | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
| 3/16 | 0.3 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 37.2 | 24.9 | 4.85 | 0.03 |
| 1/4 | 0.5 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 46.7 | 32.5 | 6.35 | 0.05 |
| 5/16 | 0.75 | 13.5 | 9.65 | 31 | 7.85 | 21.3 | 19.1 | 53 | 37.3 | 7.85 | 0.1 |
| 3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 63 | 45.2 | 9.65 | 0.16 |
| 7/16 | 1.5 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 74 | 51.5 | 11.2 | 0.215 |
| 1/2 | 2 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 83.5 | 58.5 | 12.7 | 0.36 |
| 5/8 | 3.25 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 106 | 74.5 | 17.5 | 0.76 |
| 3/4 | 4.75 | 31.8 | 22.4 | 71.5 | 19.1 | 51 | 46 | 126 | 89 | 20.6 | 1.23 |
| 7/8 | 6.5 | 36.6 | 25.4 | 84 | 22.4 | 58 | 53 | 148 | 102 | 24.6 | 1.8 |
| 1 | 8.5 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 167 | 119 | 26.9 | 2.57 |
| 1-1/8 | 9.5 | 46 | 31.8 | 108 | 28.7 | 74 | 68.5 | 190 | 131 | 31.8 | 3.75 |
| 1-1/4 | 12 | 51.5 | 35.1 | 119 | 31.8 | 82.5 | 76 | 210 | 146 | 35.1 | 5.31 |
| 1-3/8 | 13.5 | 57 | 38.1 | 133 | 35.1 | 92 | 84 | 233 | 162 | 38.1 | 6.98 |
| 1-1/2 | 17 | 60.5 | 41.4 | 14 | 38.1 | 98.5 | 92 | 254 | 175 | 41.1 | 8.4 |
| 1-3/4 | 25 | 73 | 51 | 178 | 44.5 | 127 | 106 | 313 | 225 | 57 | 15.4 |
| 2 | 35 | 82.5 | 57 | 197 | 51 | 146 | 122 | 348 | 253 | 61 | 23.7 |
| 2-1/2 | 55 | 44.6 | 105 | 70 | 267 | 66.5 | 184 | 145 | 453 | 327 | 44.57 |
