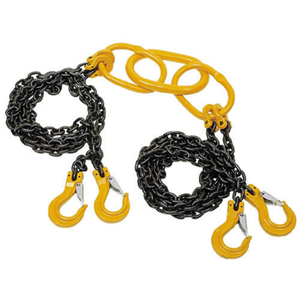

NACM2010 GRADE 80 ALLOY CHAIN
Meet the latest guidelines of the National Association of Chain Manufacturers (NACM)
Produced from the highest quality alloy steel
Embossed with “G80” and traceability code
Quenched and tempered, proof tested
In accordance with 4:1 design factor required by NACM specifications
Black electrophoresis finish
WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS !
Nominal Chain Size | Material Diameter | Working Load Limit(Max.) | Proof Test (Min.) | Min. Breaking Force | Inside Length (Max.) | Inside Width Range | |||||||
in | mm | in | mm | lbs | kg | lbs | kN | lbs | kN | in | mm | in | mm |
7/32 | 5.5 | 0.217 | 5.5 | 2,100 | 970 | 4,200 | 19.0 | 8,400 | 38.0 | 0.69 | 17.6 | 0.281-0.325 | 7.14-8.25 |
9/32 | 7.0 | 0.276 | 7.0 | 3,500 | 1,570 | 7,000 | 30.8 | 14,000 | 61.6 | 0.90 | 22.9 | 0.375-0.430 | 9.53-10.92 |
5/16 | 8.0 | 0.315 | 8.0 | 4,500 | 2,000 | 9,000 | 40.3 | 18,000 | 80.6 | 1.04 | 26.4 | 0.430-0.500 | 10.92-12.70 |
3/8 | 10.0 | 0.394 | 10.0 | 7,100 | 3,200 | 14,200 | 63.0 | 28,400 | 126.0 | 1.26 | 32.0 | 0.512-0.600 | 13.00-15.20 |
1/2 | 13.0 | 0.512 | 13.0 | 12,000 | 5,400 | 24,000 | 107.0 | 48,000 | 214.0 | 1.64 | 41.6 | 0.688-0.768 | 17.48-19.50 |
5/8 | 16.0 | 0.630 | 16.0 | 18,100 | 8,200 | 36,200 | 161.0 | 72,400 | 322.0 | 2.02 | 51.2 | 0.812-0.945 | 20.63-24.00 |
3/4 | 20.0 | 0.787 | 20.0 | 28,300 | 12,800 | 56,600 | 252.0 | 113,200 | 504.0 | 2.52 | 64.0 | 0.984-1.180 | 25.00-30.00 |
7/8 | 22.0 | 0.866 | 22.0 | 34,200 | 15,500 | 68,400 | 305.0 | 136,800 | 610.0 | 2.77 | 70.4 | 1.080-1.300 | 27.50-33.00 |
1 | 26.0 | 1.020 | 26.0 | 47,700 | 21,600 | 95,400 | 425.0 | 190,800 | 850.0 | 3.28 | 83.2 | 1.280-1.540 | 32.50-39.00 |
1-1/4 | 32.0 | 1.260 | 32.0 | 72,300 | 32,800 | 144,600 | 644.0 | 289,200 | 1288.0 | 4.03 | 102.4 | 1.580-1.890 | 40.00-48.00 |
