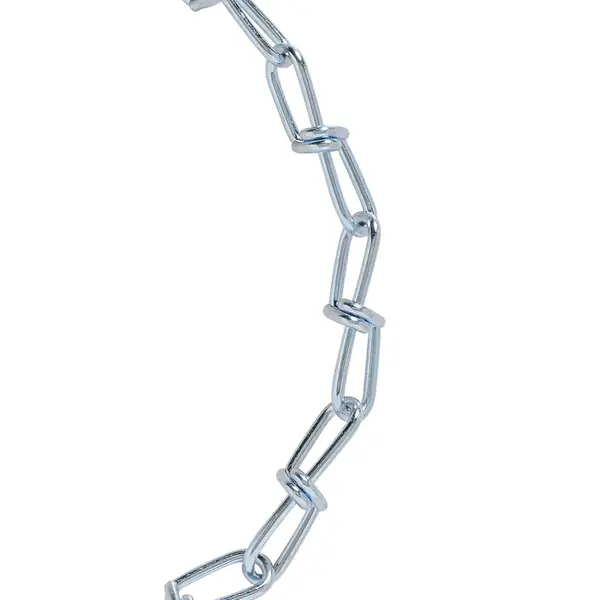

Double Loop Chain is a welding less chain in which link is formed by a knot of wire. This light duty chain is used in animal tie outs, agricultural implements, doors/gates, porch swings, children''s swings, animal chains and light fixtures.
Knot Link Chain Application
This chain is ideal for a huge range of different uses and is suitable for use outdoors thanks to the galvanise coating that protects it from the elements.
USA Standard Double Loop Knotted Chain
| Item NO. | Diameter | Inside length | Outside width | Weight per 100ft | |||
| D(mm) | A(mm) | B(mm) | kg | ||||
| 5 | 1.6 | 23.4 | 7 | 1.8 | |||
| 4 | 1.8 | 24.4 | 8 | 2.2 | |||
| 4L | 1.8 | 30.5 | 8 | 1.96 | |||
| 3 | 2 | 28 | 9 | 3 | |||
| 3Z | 2 | 36.3 | 9 | 2.6 | |||
| 3L | 2 | 38 | 10.5 | 2.6 | |||
| 2 | 2.3 | 34 | 10 | 3.5 | |||
| 1 | 2.7 | 39.5 | 12 | 4.5 | |||
| 1Z | 2.7 | 49 | 13.5 | 4.2 | |||
| 1L | 2.7 | 52 | 12 | 4.2 | |||
| 1/0 | 3 | 45.5 | 14 | 5.7 | |||
| 1/0L | 3 | 56 | 14 | 5.2 | |||
| 2/0 | 3.4 | 46.5 | 15.5 | 7.5 | |||
| 2/0Z | 3.4 | 53 | 15.5 | 7 | |||
| 2/0L | 3.4 | 57 | 15.5 | 7 | |||
| 3/0 | 3.8 | 55 | 17 | 9.4 | |||
| 4/0 | 4.1 | 56 | 19 | 11 | |||
| 6/0 | 4.9 | 74 | 21 | 15.7 | |||
DIN5686 Knotted Chain
| NO. | Diameter(d mm) | Inside length(A mm) | Outside width(B mm) | Breaking Load kg | Weight Per 100m kg |
| 14 | 1.4 | 21 | 6.5 | 16 | 4.2 |
| 16 | 1.6 | 23 | 7.0 | 22 | 6.0 |
| 20 | 1.8 | 26 | 8.0 | 30 | 7.3 |
| 22 | 2.0 | 28 | 9.0 | 40 | 9.0 |
| 25 | 2.2 | 31 | 10.0 | 50 | 11.0 |
| 27 | 2.5 | 35 | 11.0 | 70 | 14.0 |
| 30 | 2.8 | 39 | 12.5 | 90 | 17.0 |
| 32 | 3.1 | 41 | 14.0 | 120 | 21.0 |
| 35 | 3.4 | 44 | 15.0 | 140 | 26.0 |
| 40 | 3.8 | 46 | 17.0 | 160 | 34.0 |
| 45 | 4.2 | 50 | 19.0 | 170 | 41.0 |
| 50 | 4.6 | 55 | 20.5 | 180 | 50.0 |
| 55 | 5.0 | 60 | 22.5 | 190 | 57.0 |
Knotted Chain Packages
