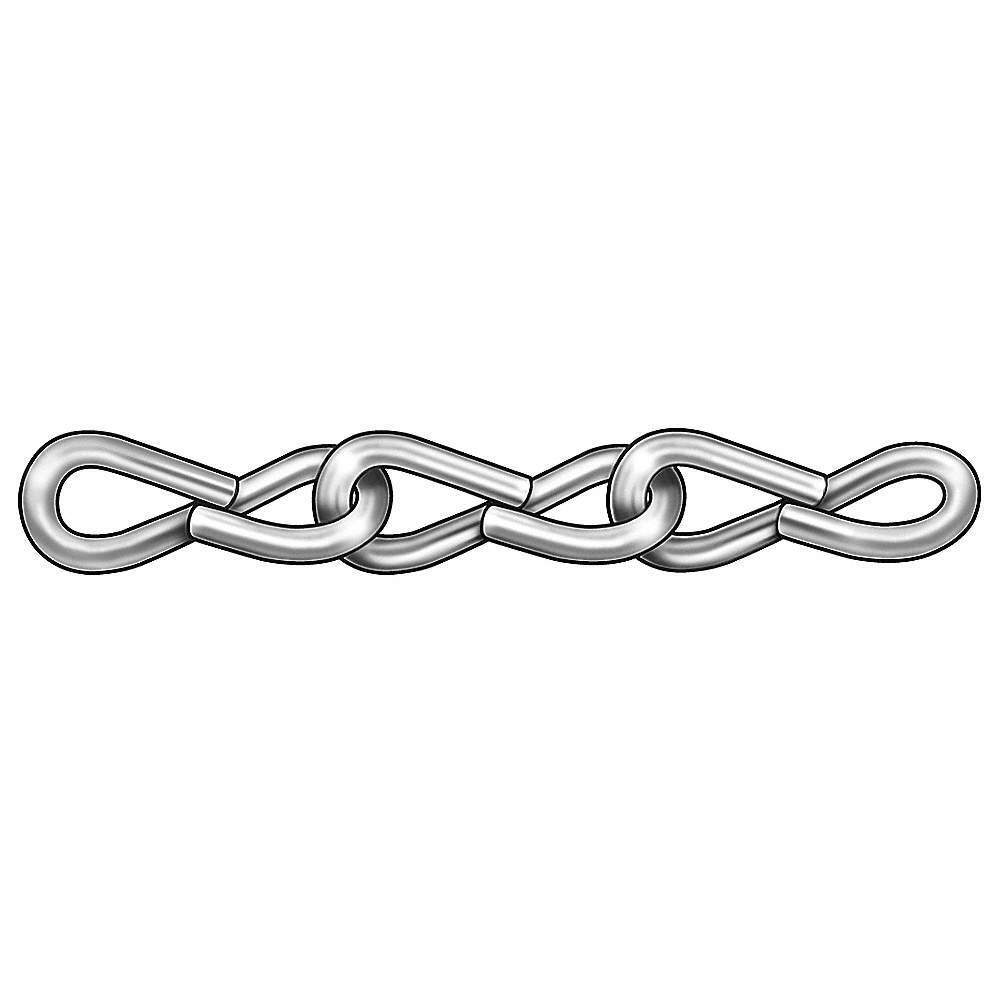

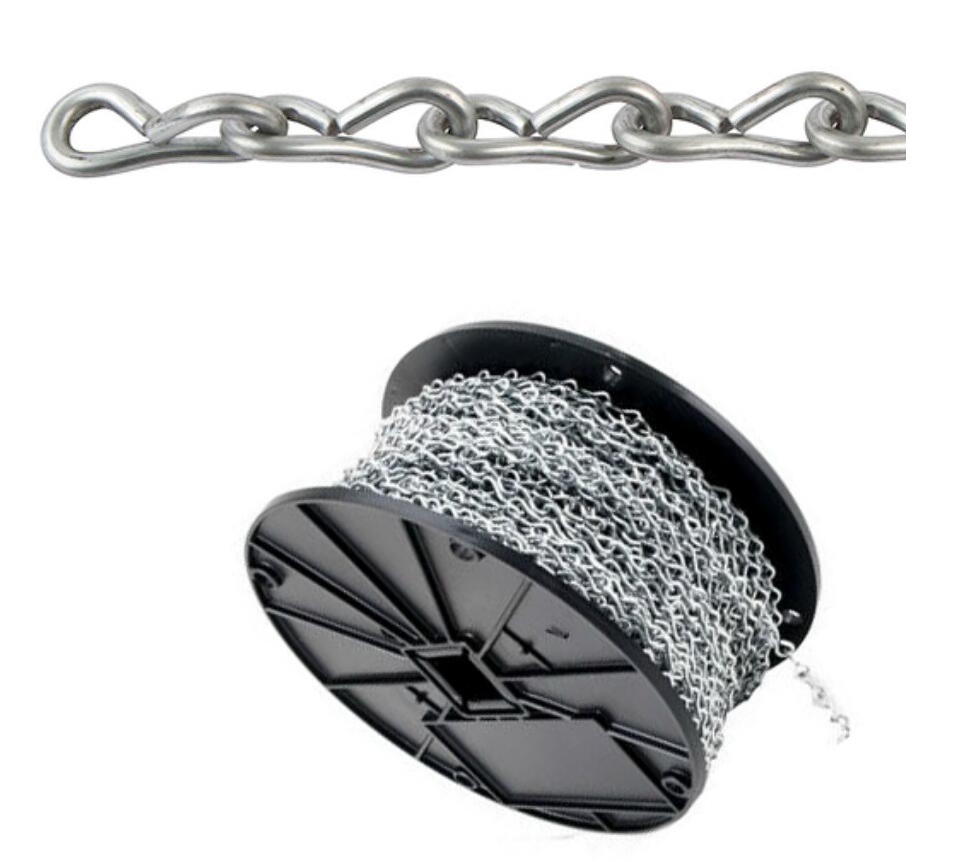

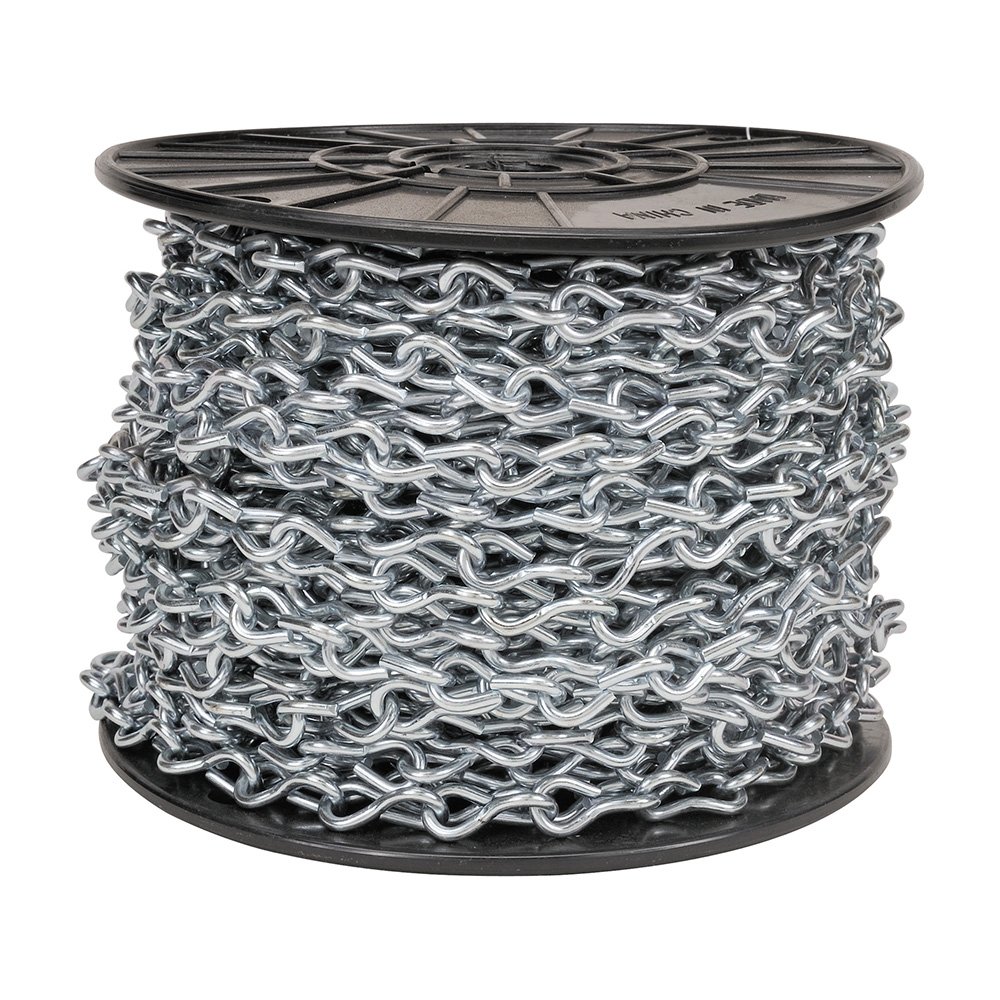

Each of the links in this weldless jack chain consists of a double loop of wire resembling a figure 8, with the loops in planes at right angles to each other. The jack chain is suitable for light residential and commercial applications. It is not intended for lifting applications. The finish helps to resist corrosion.
Model | Material size | length for 100links | weight 100ft(30.5m)(lbs) | WLL(lbs) | BL(lbs) | |||
inch | inch | Steel | Brass | Steel | Brass | Steel | Brass | |
20# | 0.047 | 39 | 1.75 | 1.9 | 5 | 4 | 20 | 15 |
16# | 0.062 | 52 | 3 | 3.25 | 10 | 8 | 40 | 30 |
14# | 0.08 | 63 | 5 | 5.4 | 16 | 11 | 65 | 45 |
12# | 0.105 | 75 | 8.5 | 9.15 | 29 | 20 | 115 | 80 |
10# | 0.135 | 95 | 14.7 | 15.8 | 43 | 34 | 170 | 135 |
8# | 0.132 | 109 | 20.5 | 22 | 60 | 43 | 240 | 170 |
6# | 0.192 | 122 | 28.5 | 30.7 | 58 | 66 | 350 | 285 |
Steel zinc-plated finish for good weather resistance
Light duty single twisted chain
Maximum working load limit that shall be applied in direct tension to a new and undamaged chain
