TL022051
TL

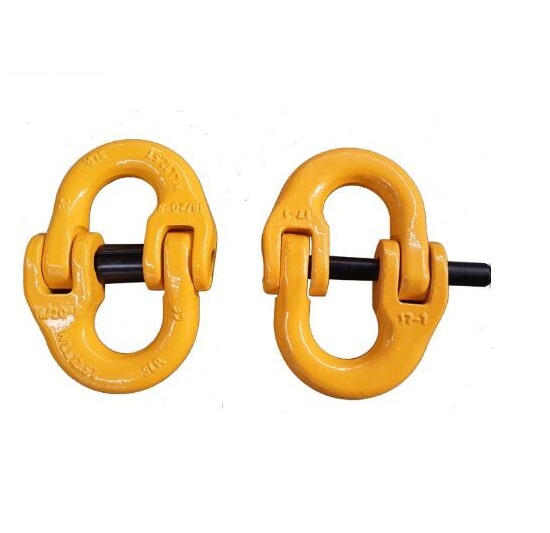

Constructed of grade 80 alloy steel, heavy duty dual hammerlock coupler is solid, anti-corrosion, long service life.
Apply for safety chains. It solves the trailer safety chain hooks not fitting in the receiver hitch holes.
Installation: Add grease to the inside of the gasket and grind off the angle of the pin a little, then use a hammer or C-clamp to drive the pin to the locking ring.
| Item No. | Size (mm) | W.L.L (tons) | A (mm) | L (mm) | K (mm) | D (mm) | N.W. (kg) |
| TL022051 | 6-8 | 1.12 | 16.2 | 58 | 42 | 7 | 0.08 |
| TL022052 | 7/8-8 | 2 | 20.5 | 79.5 | 58 | 8.5 | 0.145 |
| TL022053 | 10-8 | 3.15 | 28 | 93 | 68 | 10.8 | 0.3 |
| TL022054 | 13-8 | 5.3 | 30 | 117 | 90 | 15 | 0.7 |
| TL022055 | 16-8 | 8 | 36.3 | 93 | 148 | 19.8 | 1.1 |
| TL022056 | 18/20-8 | 12.5 | 44 | 117 | 169.5 | 24 | 1.84 |
| TL022057 | 22-8 | 15 | 51 | 148 | 193.5 | 26 | 3.2 |
| TL022058 | 26-8 | 21.2 | 58 | 154 | 220 | 30 | 4.5 |
| TL022059 | 32-8 | 31.5 | 67.5 | 169.5 | 281 | 37 | 9 |
