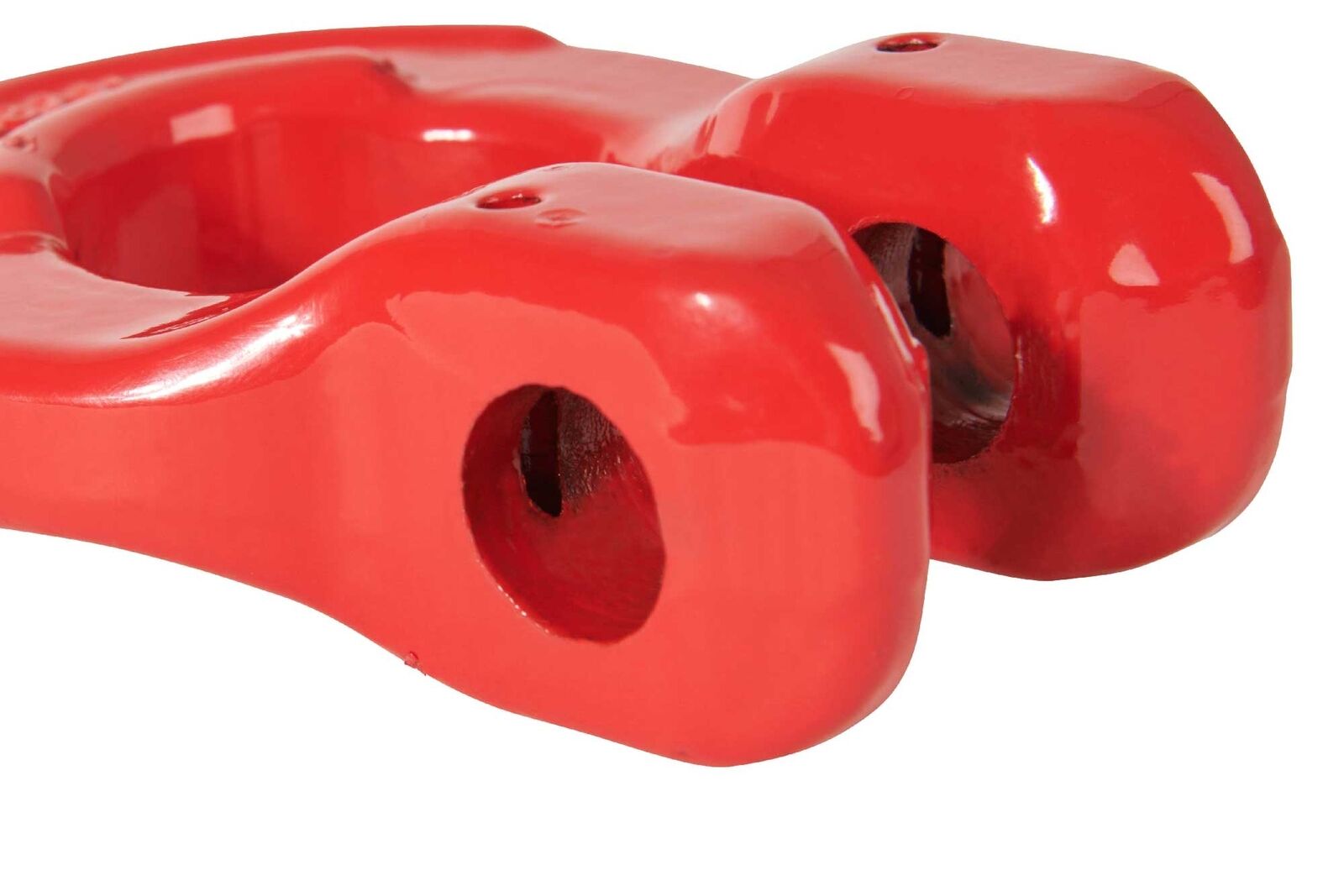

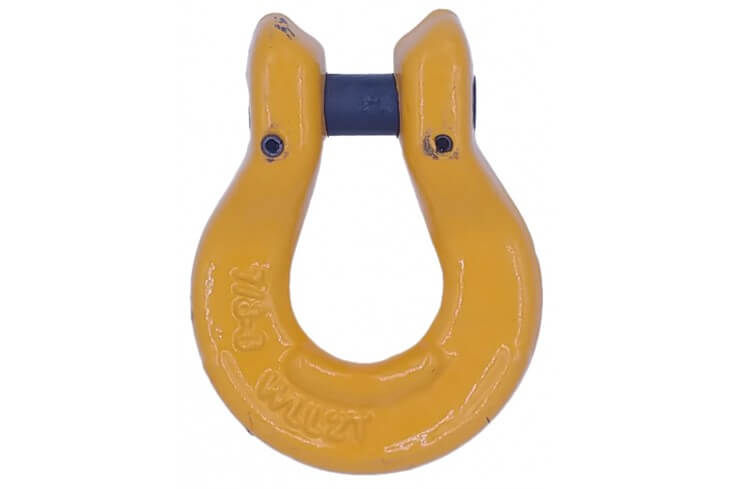

Grade 80 omega links are designed to attach hooks and other accessories to chain to create a sling. See the drop-down menu for available sizes and working load limits.
Omega Links are commonly used in conjunction with recessed Head Rings and Chain for Chain Slings. They are also a popular fitting for variable type slings.
SIZE(MM) | Weight(KG) | WLL(T) | BL(T) | A | B | D | L | H |
6-8 | 0.5 | 1.12 | 4.48 | 8 | 41 | 20.5 | 52 | 25 |
7/8-8 | 0.8 | 2 | 8 | 10 | 52 | 23.5 | 68.5 | 35 |
10-8 | 1.5 | 3.15 | 12.6 | 12 | 62 | 31.5 | 81 | 40.5 |
13-8 | 2.8 | 5.3 | 21.2 | 15 | 81 | 41 | 108 | 54 |
16-8 | 5.6 | 8 | 32 | 19 | 99 | 49.5 | 126 | 64 |
20-8 | 7.5 | 12.5 | 50 | 23 | 118 | 58 | 152 | 75.6 |
