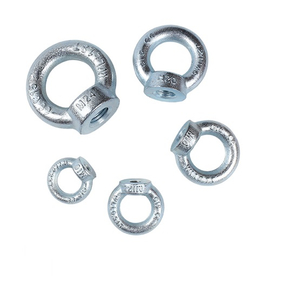

The eye nut must be of fully screwd in to achieve a perfect contact between the two mating faces.
Both threads must be of a equal length and the base material of equal strength to that of the nut.
| Size | WLL | Dimension(mm) | |||||||
| mm | KN | a | b | c | d | t | h | H | I |
| M8 | 0.785 | 32.6 | 20 | 6.3 | 16 | 5 | 17 | 33.3 | 15 |
| M10 | 1.47 | 41 | 25 | 8 | 20 | 7 | 21 | 41.5 | 18 |
| M12 | 2.16 | 50 | 30 | 10 | 25 | 9 | 26 | 51 | 22 |
| M16 | 4.41 | 60 | 35 | 12.5 | 30 | 11 | 30 | 60 | 27 |
| M20 | 6.18 | 72 | 40 | 16 | 30 | 13 | 35 | 71 | 30 |
| M24 | 9.32 | 90 | 50 | 20 | 45 | 18 | 45 | 90 | 38 |
| M30 | 14.7 | 110 | 60 | 25 | 60 | 22 | 55 | 110 | 45 |
| M36 | 22.6 | 133 | 70 | 31.5 | 70 | 26 | 65 | 131.5 | 55 |
