G80 Rigging Alloy Steel Lifting Point Eye Nut for Lifting

Super alloy steel construction.
Fatigue rated x 1.5 WLL for 20.000 cycles.
Proof tested - 2.5 times working load limit.
100% Magnaflux crack detected.
Safety factor 4:1
Surface: Self colored, painted, or zinc plated.
Packing: Gunny bag, wooden case, plastic drum
Availability:
Quantity:
  • TL022371

  • TL

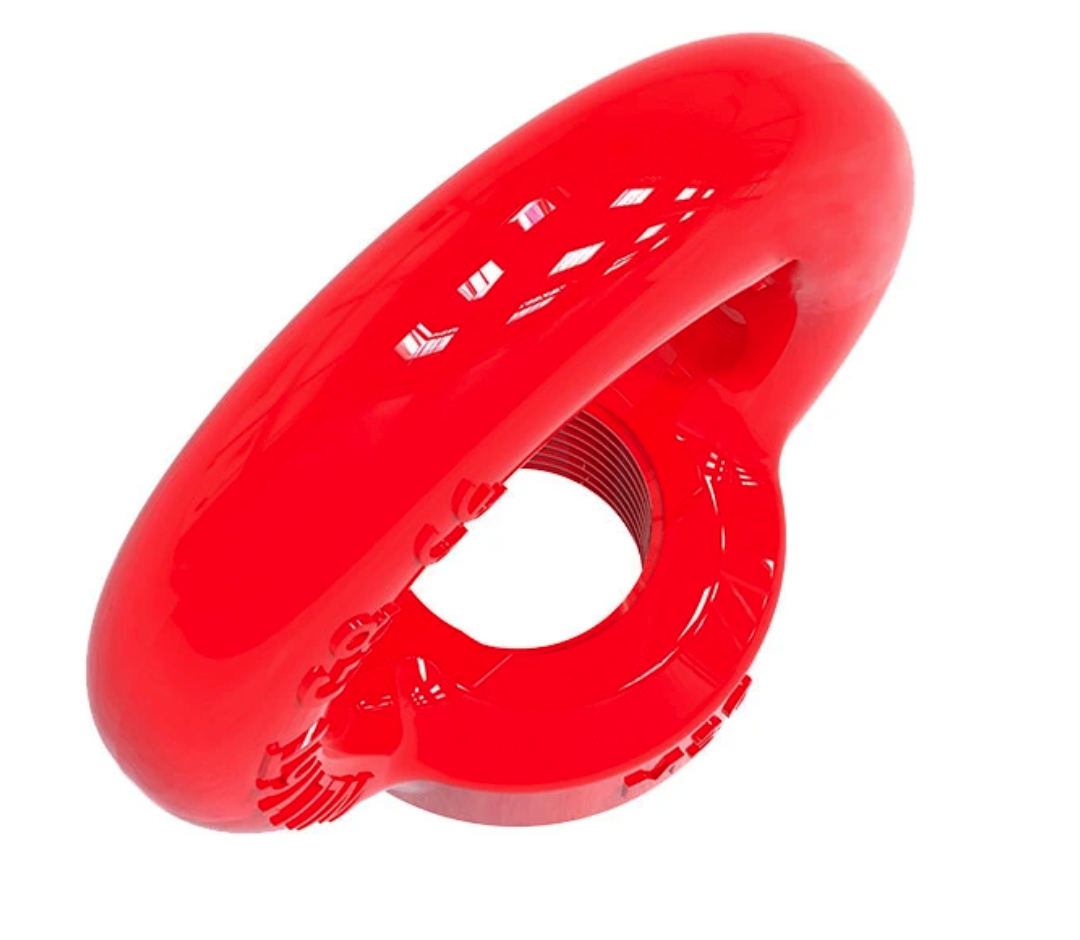

Rigging G80 alloy steel lifting point eye nut for lifting

Loading Eye Nuts at an angle will result in a reduced Working Load Limit.


G80 Eye NutG80 Eye Nut


Item No. Size(mm) W.L.L (tons) D (mm) N (mm) L(mm) N.W. (kg)
90°
TL022371 M6 0.4 0.15 36 20 36 0.049
TL022372 M8 1 0.4 36 20 36 0.05
TL022373 M10 1 0.4 45 25 45 0.09
TL022374 M12 2 0.75 54 30 53 0.16
TL022375 M16 4 1.5 63 35 62 0.24
TL022376 M20 6 2.3 63 35 62 0.36
TL022377 M24 8 3.2 72 40 71 0.72
TL022378 M30 12 4.5 72 40 71 1.32
TL022379 M36 16 7 81 45 81 2.08
TL022380 M42 24 9 90 50 90 3.11
TL022381 M48 32 12 90 50 90 5.02
