G80 Alloy Steel Lifting Foundry Eye Hook for lifting chain

Share to:

G80 Alloy Steel Lifting Foundry Eye Hook for lifting chain

Forged super alloy steel; Quenched & Tempered
Suitable for EN812-2 G80 Chain
100% Magnaflux Crack Detection
Individually proof-tested at 2.5X Working Load Limit
Fatigue tested at 1.5X Working Load Limit for 20,000 cycles
Surface Finish: Powder Plastified

Availability:

Quantity:



Inquire Add to Basket

Model:
TL022201
Brand:
TL

Product Description

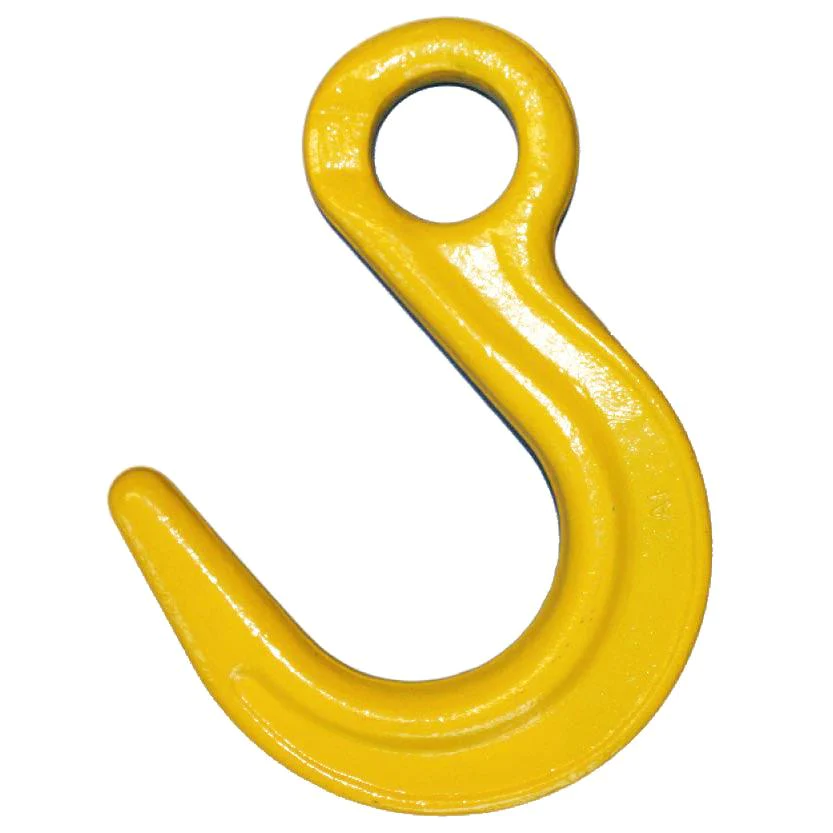

G80 Foundry Hook with Eye for Lifting Chain Slings

Fully compliant for use in chain slings certified to EN818-4. Only components manufactured to EN1677 meet with the requirements of this standard.

G80 Foundry Eye Hook

Item No.	Size (mm)	W.L.L (tons)	A(mm)	D (mm)	P (mm)	K (mm)	H (mm)	T(mm)	N.W. (kg)
TL022201	7/8-8	2	18	12	63.5	120	31	25	1.09
TL022202	10-8	3.15	22	16	76	146	38	32	1.95
TL022203	13-8	5.3	27	19	89	175	44.5	38	3.22
TL022204	16-8	8	32	20	101	205	51.5	46	5.26
TL022205	20-8	12.5	38	25	114	235	65	56	9.07
TL022206	22-8	15	45	28.5	127	264	68.5	57	11.79
TL022207	26-8	21.2	67.5	29.3	140	295	77	66	16.8
TL022208	32-8	31.5	81.5	35	153.5	328	97.5	80	26.6
