TL022272
TL

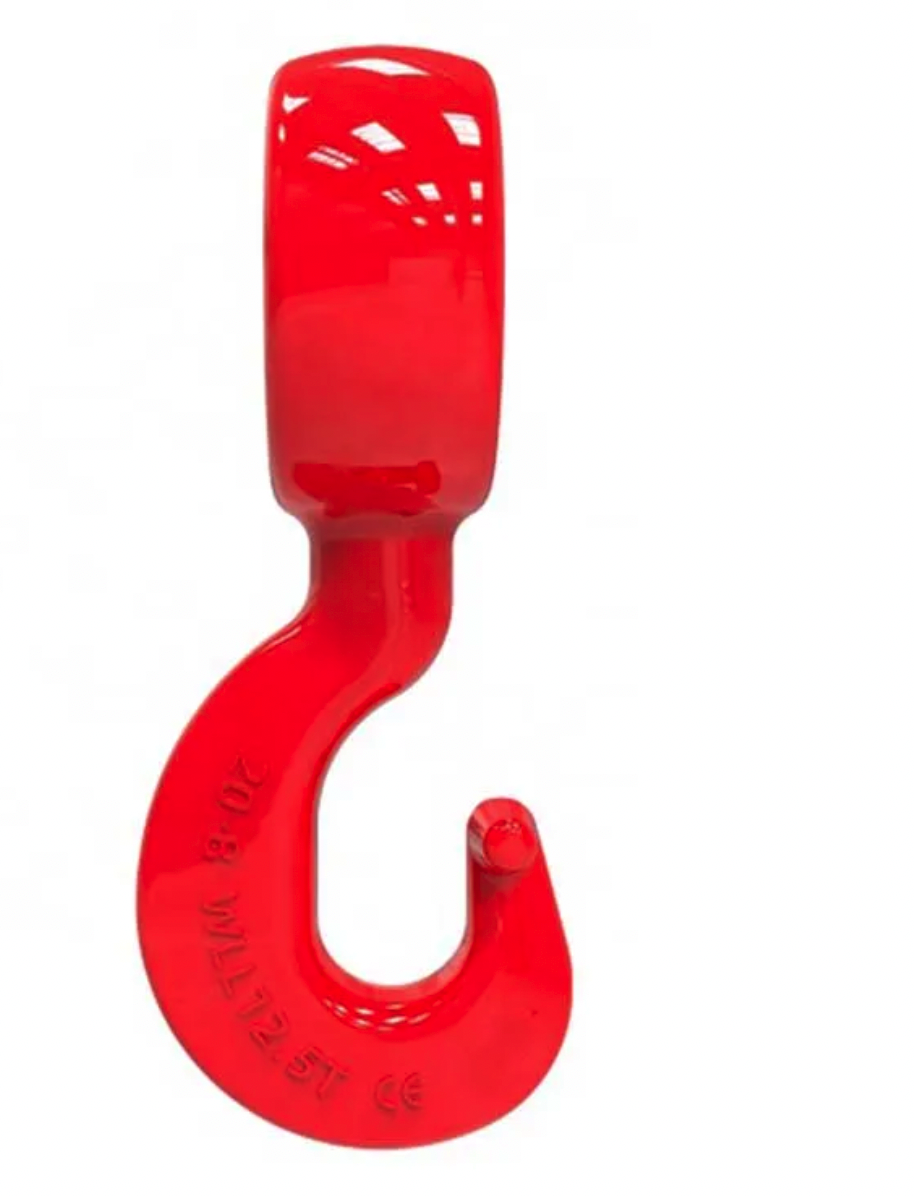

Eye choke hook is designed for reeving applications with special hook and twist eye to connect ropes and paired with omega link in use.
G80 alloy twist eye choke hook is designed for reeving applications with special hook and twist eye to connect ropes and paired with omega link in use, we also have G80 sliding choker hook for your option.
Stamped with “G80” or “8” for easy identified and suitable for the rope slings.
The G8 coupling links are made from quenched and tempered alloy steel for high tensile strength and ductility, proof test is at 2.5 times of working load limit.
| Item No. | Size (mm) | W.L.L (tons) | A(mm) | B (mm) | C(mm) | D1 (mm) | D2 (mm) | D4 (mm) | E(mm) | L (mm) | N.W. (kg) |
| TL022272 | 7/8-8 | 2 | 19 | 28 | 6.5 | 52 | 30.5 | 7.5 | 16 | 123 | 0.36 |
| TL022273 | 10-8 | 3.2 | 26 | 40 | 17.5 | 68 | 39 | 8 | 20 | 157 | 0.72 |
| TL022274 | 13-8 | 5.4 | 34 | 43 | 21 | 82 | 52 | 9.5 | 27 | 195 | 1.4 |
| TL022275 | 16.8 | 8.2 | 51 | 45.5 | 31 | 108 | 64 | 10.5 | 30 | 246 | 3.17 |
| TL022276 | 18-8 | 10 | 49.5 | 53 | 22 | 121 | 75 | 12 | 37 | 268 | 3.8 |
| TL022277 | 20/22-8 | 15.3 | 70 | 80 | 14 | 146 | 84 | 14 | 47 | 367 | 8.95 |
Eye choke hook is designed for reeving applications with special hook and twist eye to connect ropes and paired with omega link in use.
G80 alloy twist eye choke hook is designed for reeving applications with special hook and twist eye to connect ropes and paired with omega link in use, we also have G80 sliding choker hook for your option.
Stamped with “G80” or “8” for easy identified and suitable for the rope slings.
The G8 coupling links are made from quenched and tempered alloy steel for high tensile strength and ductility, proof test is at 2.5 times of working load limit.
| Item No. | Size (mm) | W.L.L (tons) | A(mm) | B (mm) | C(mm) | D1 (mm) | D2 (mm) | D4 (mm) | E(mm) | L (mm) | N.W. (kg) |
| TL022272 | 7/8-8 | 2 | 19 | 28 | 6.5 | 52 | 30.5 | 7.5 | 16 | 123 | 0.36 |
| TL022273 | 10-8 | 3.2 | 26 | 40 | 17.5 | 68 | 39 | 8 | 20 | 157 | 0.72 |
| TL022274 | 13-8 | 5.4 | 34 | 43 | 21 | 82 | 52 | 9.5 | 27 | 195 | 1.4 |
| TL022275 | 16.8 | 8.2 | 51 | 45.5 | 31 | 108 | 64 | 10.5 | 30 | 246 | 3.17 |
| TL022276 | 18-8 | 10 | 49.5 | 53 | 22 | 121 | 75 | 12 | 37 | 268 | 3.8 |
| TL022277 | 20/22-8 | 15.3 | 70 | 80 | 14 | 146 | 84 | 14 | 47 | 367 | 8.95 |
