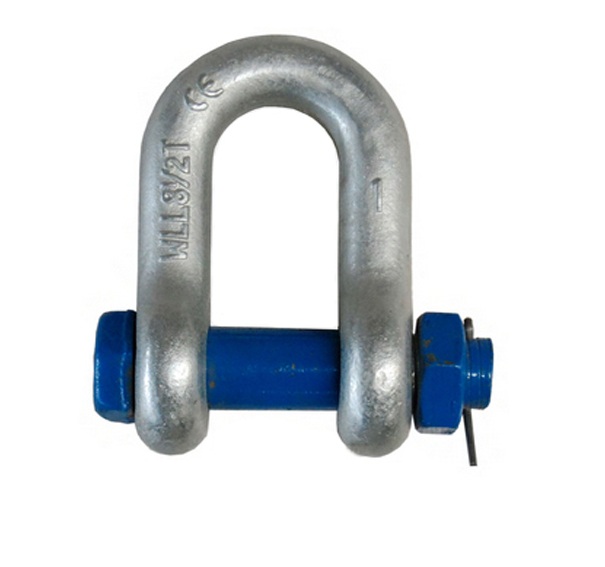

Heavy-duty US Type High Tensile Alloy Forged safety G2150 dee shackle with bolt

G2150 dee shackle with bolt
Material: Body carbon steel 45#, Bolt: Alloy steel 40CR
Standard:US standard
Forged Quenched&Tempered
Maximum proof load is 2.2 times of the working load limit
Safety factor: 4:1 or 6:1
Surface treatment: electric galvanized/Hot dip galvanized/self color
Availability:
Quantity:
  • TL025061

  • TL

G2150 Bolt Anchor Shackle: High-Strength and Versatile Lifting and Rigging

G2150 shackle Feature

【Theatrical Round body】: bolt type

【Durability】: shackle meets or exceeds the requirements of G2150 which include identification, durability, design factor, proof load and temperature requirements.

【Material】: 45# steel, Body and Bolt are plastic powder coated for rust prevention. Heavy duty and weather-resistant can withstand harsh weather conditions.

【Universal Design】:-Shackle for jeep, ATV, truck, trailer and sport utility vehicle, works well with tow straps, snatch straps, tree savers, snatch block and industrial lifting

【Many Uses】:Connects loose ends of cables, chains, straps and snatch blocks; Works perfectly with all our tow straps, snatch straps, tree savers and snatch blocks. Great for cars and other applications for tie downs, towing and recovery.


Bolt Type Chain Shackle Use Instruction

shackle_load

Never Exceed 120º included angle. Use bolt Type and Screw Pin shackle only. Shackles symmetrically loaded with two legs slings having a maximum included angle of 120º can be untilized to full working load limit.



US Type High Tensile Forged Shackle G2150

Chain Shackle diamension chart

Size WLL A B C D E F G H I Weight
(in) (T) mm mm mm mm mm mm mm mm mm kg
1/4 0.5 11.9 7.85 6.35 15.5 19.1 40.4 24.6 39.6 6.35 0.06
5/16 0.75 13.5 9.65 7.85 19.1 25.4 48.5 29.5 46.2 7.85 0.1
3/8 1 16.8 11.2 9.65 23.1 31 58.5 35.8 55 9.65 0.15
7/16 1.5 19.1 12.7 11.2 26.9 36.1 67.5 41.1 63.5 11.2 0.22
1/2 2 20.6 16 12.7 30.2 41.4 77 46 71 12.7 0.34
5/8 3.25 26.9 19.1 16 38.1 51 95.5 58.5 89.5 16 0.67
3/4 4.75 31.8 22.4 19.1 46 60.5 115 70 103 20.6 1.14
7/8 6.5 36.6 25.4 22.4 53 71.5 135 81 120 24.6 1.74
1 8.5 42.9 28.7 25.4 60.5 81 151 93.5 135 25.4 2.52
1-1/8 9.5 46 31.8 28.7 68.5 91 172 103 150 31.8 3.45
1-1/4 12 51.5 35.1 31.8 76 100 191 115 165 35.1 4.9
1-3/8 13.5 57 38.1 35.1 84 111 210 127 183 38.1 6.24
1-1/2 17 60.5 41.4 38.1 92 122 230 137 196 41.1 8.39
1-3/4 25 73 51 44.5 106 146 279 162 230 54 14.2
2 35 82.5 57 51 122 172 312 184 264 51 21.2
2-1/2 55 105 70 66.5 145 203 377 238 344 66.5 38.6
