TL025651
TL

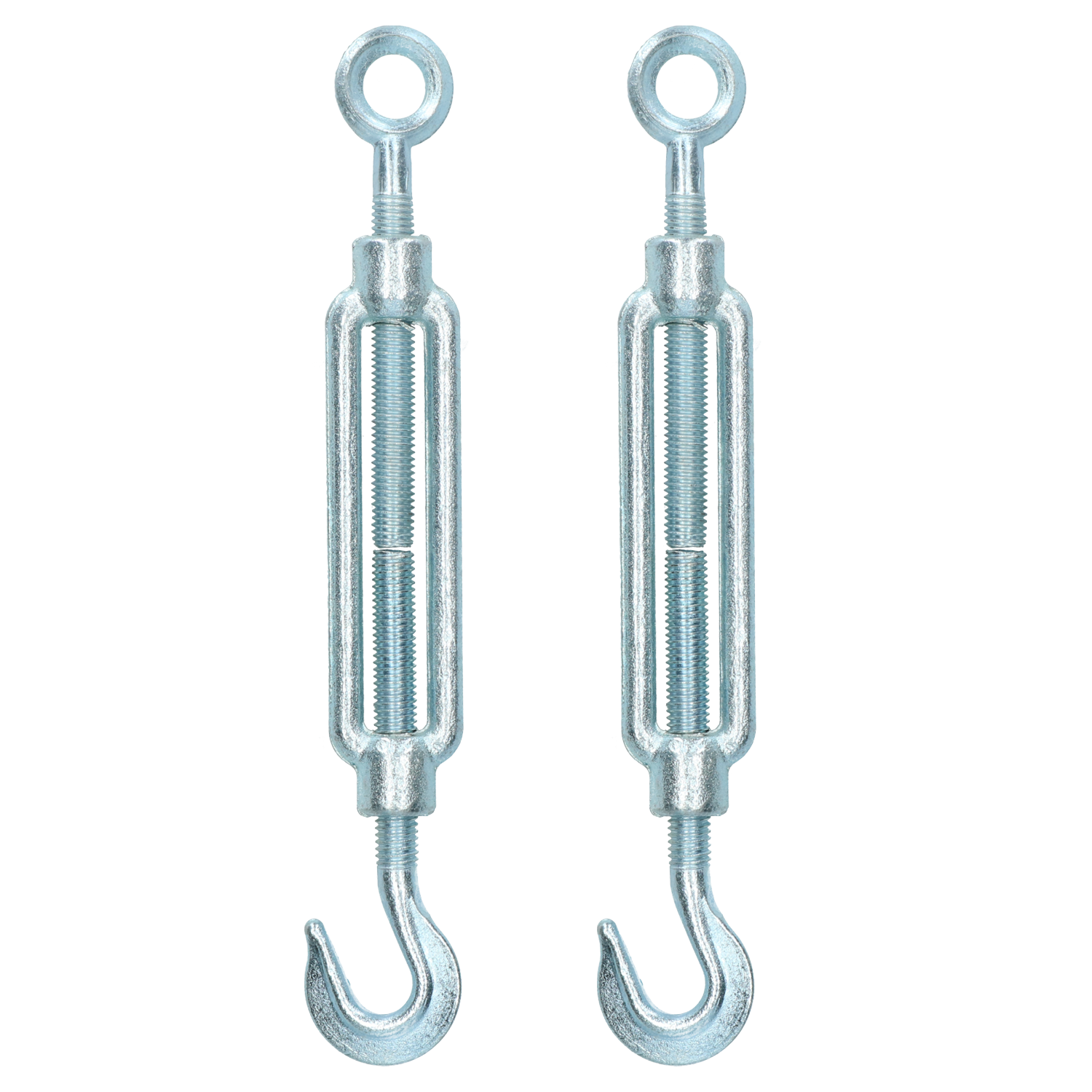

Galvanised Turnbuckle Screw Straining Tensioner
Eye/Eye,eye/hook,hook/hook,jaw/jaw
Galvanized/Hot dip galvanized/Self color
Size | Dimension(mm) | Weight | ||||||
mm | L1 | L2 | L3 | b1 | L4 | d1 | L5 | 100pcs(lbs) |
M6 | 110 | 80 | 85 | 8.5 | 80 | 9 | 172 | 21 |
M8 | 110 | 75 | 85 | 11 | 84 | 10 | 182 | 36.4 |
M10 | 125 | 85 | 112 | 13.5 | 105 | 14 | 213 | 64 |
M12 | 125 | 80 | 117 | 15.5 | 115 | 16 | 238 | 94.9 |
M14 | 140 | 90 | 122 | 18.5 | 122 | 18 | 263 | 136.8 |
M16 | 170 | 110 | 138 | 19 | 165 | 22 | 320 | 203 |
M20 | 200 | 130 | 170 | 20.5 | 167 | 24 | 367 | 359.7 |
M22 | 220 | 145 | 185 | 26 | 167 | 27 | 398 | 485.4 |
M24 | 255 | 170 | 205 | 26 | 205 | 27 | 447 | 662 |
M30 | 255 | 160 | 225 | 33 | 255 | 31 | 512 | 1015 |
M36 | 295 | 180 | 255 | 44 | 276 | 43 | 568 | 1694.6 |
M42 | 330 | 200 | 340 | 48 | 260 | 49 | 683 | 2846.4 |
M48 | 355 | 195 | 360 | 58 | 300 | 58 | 755 | 4633.7 |
