Single or Double Sheave Marine shackle Wire Blocks for lifting

Share to:

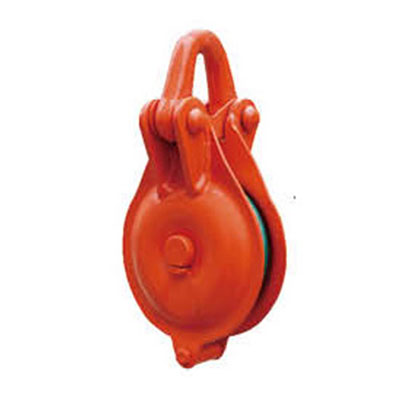

Single or Double Sheave Marine shackle Wire Blocks for lifting

1. Item: Marine wire rope pulley block
2. Material: carbon steel
3. Technology: Drop forged
4. Surface: Galvanized or zinc plated
5. WLL: 0.5T-5T
6. Braking load is 4 times of working load limited
7. Usage: Lifting

Availability:

Quantity:



Inquire Add to Basket

Model:
TL051211
Brand:
TL

Product Description

.Side opening link permits quick, easy insertion of rope or cable without threading

.Shackle forged to ensure the quality.Nodular cast iron wheel

.Neat shape with durable powder coat finish

SHEAVE DIA(mm)	S.W.L(T)	DIMENSIONS(mm)				N.W(kg)	FOR WIRE DIA(mm)
		A	B	C	D
75	0.5	178	85	26	12	1.1	8
100	1	235	121	34	16	1.8	8
125	1.5	305	145	38	18	3.5	9
150	2	350	180	41	22	5.1	12
200	4	425	225	46	28	11.5	16
250	5	495	275	60	28	17	22

China Marine shackle Wire Blocks supplier China Marine shackle Wire Blocks Manufacturer China Marine shackle Wire Blocks Factory Marine shackle Wire Blocks Marine shackle Wire Blocks factory Marine shackle Wire Blocks supplier Rigging Equipment crane pulley Marine shackle Blocks marine wire rope pulley block
