TL022121
TL

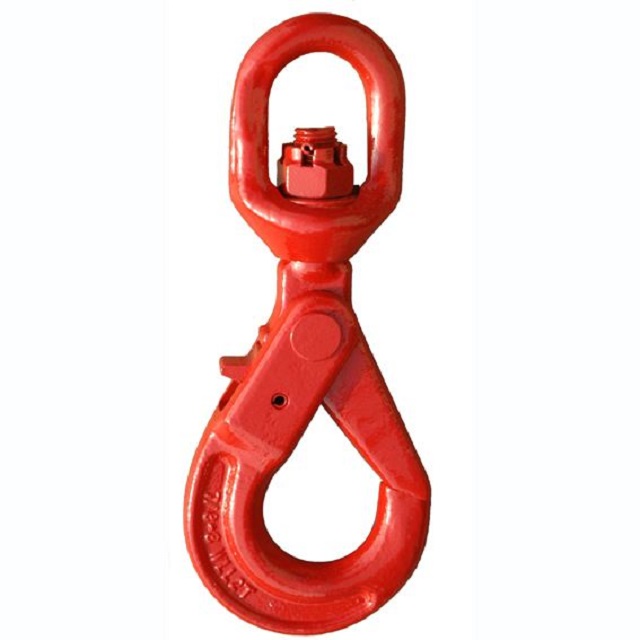

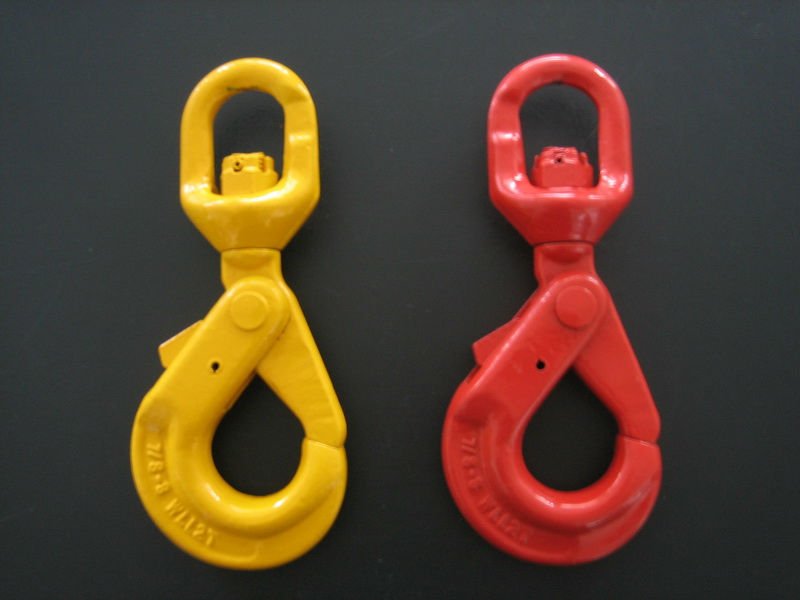

Grade 80 lifting components are manufactured from heat treated alloy steel and are ideal for heavy lifting applications
Swivels under load
Quality testing in done throughout the manufacturing process
These components also carry distinguishing marks for easy identification
| SIZE(MM) | Weight(KG) | WLL(T) | BL(T) | B | C | D | L | T | E |
| 6-8 | 0.71 | 1.12 | 4.48 | 32.5 | 22 | 11.25 | 170 | 34 | 29 |
| 7/8-8 | 1.1 | 2 | 8 | 35.5 | 26 | 12.5 | 210 | 46 | 34 |
| 10-8 | 2 | 3.15 | 12.6 | 42 | 34 | 15 | 247 | 56 | 44 |
| 13-8 | 4 | 5.3 | 21.2 | 50 | 38.5 | 16 | 302 | 69 | 52 |
| 16-8 | 7.3 | 8 | 32 | 61 | 55 | 21.5 | 383 | 86 | 60 |
| 18/20-8 | 11.6 | 12.5 | 50 | 72 | 61 | 26 | 418 | 100 | 83 |
| 22-8 | 16 | 15 | 60 | 95 | 95 | 33 | 587 | 98 | 88 |
| 26-8 | 21.5 | 21.2 | 84.8 | 122 | 115 | 42 | 610 | 110 | 95.5 |
| 32-8 | 79 | 31.5 | 126 | 140 | 126 | 52 | 777 | 166 | 150 |
