| Quantity: | |
|---|---|
Feature:

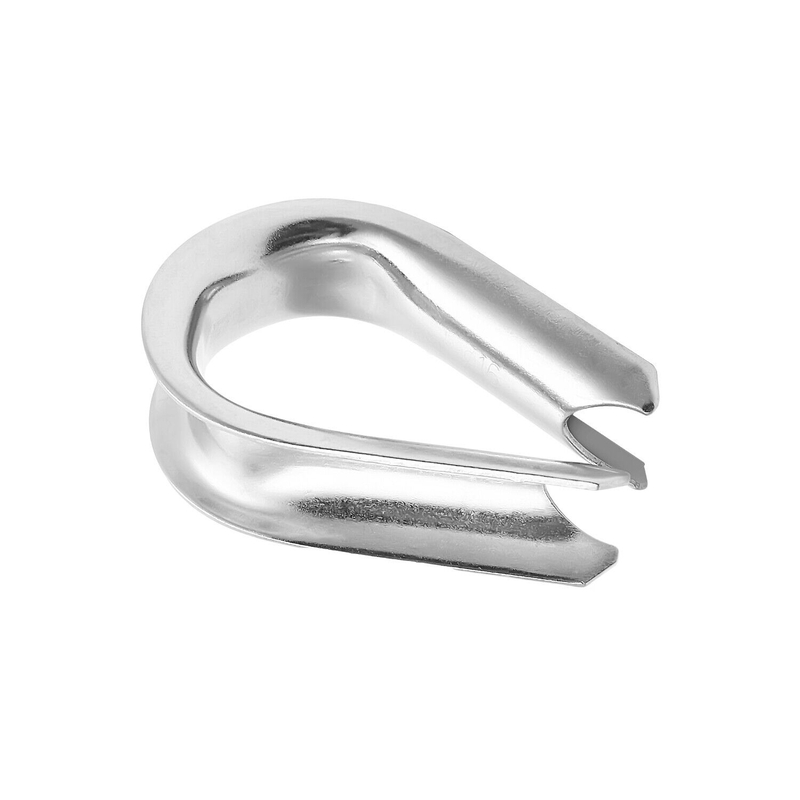

Designed to prevent crushing or overstressing wire rope at the terminal end which is used to protect the eye of a wire rope or sling.
Widely Application: Ideal for dog leashes, clothes lines, marine and industrial rigging and wire rope applications or anything else that require strong cable.
Recommended for Light Duty Service
Available in Hot Dip Galvanized or Stainless
Steel G-411 Meets the Requirements Of
Federal Specification FF-T-276b Type II.
| Item No. | Rope DIA. | Weight Per 100 | Dimensions(in.) | |||||||
| (in.) | (lbs.) | A | B | C | D | E | F | G | H | |
| TL025491 | 1/4 | 6.75 | 2.19 | 1.63 | 1.5 | 0.88 | 0.41 | 0.28 | 0.06 | 0.23 |
| TL025492 | 5/16 | 11.25 | 2.5 | 1.88 | 1.81 | 1.06 | 0.5 | 0.34 | 0.08 | 0.28 |
| TL025493 | 3/8 | 25 | 2.88 | 2.13 | 2.13 | 1.13 | 0.63 | 0.41 | 0.11 | 0.34 |
| TL025494 | 7/16 | 30 | 3.25 | 2.38 | 2.38 | 1.25 | 0.72 | 0.47 | 0.13 | 0.38 |
| TL025495 | 1/2 | 51 | 3.63 | 2.75 | 2.75 | 1.5 | 0.81 | 0.53 | 0.14 | 0.41 |
| TL025496 | 9/16 | 51 | 3.63 | 2.75 | 2.69 | 1.5 | 0.88 | 0.59 | 0.14 | 0.41 |
| TL025497 | 5/8 | 75 | 4.25 | 3.25 | 3.13 | 1.75 | 0.97 | 0.66 | 0.16 | 0.5 |
| TL025498 | 3/4 | 147 | 5 | 3.75 | 3.81 | 2 | 1.22 | 0.78 | 0.22 | 0.66 |
| TL025499 | 7/8 | 175 | 5.5 | 4.25 | 4.25 | 2.25 | 1.38 | 0.94 | 0.22 | 0.75 |
| TL025500 | 1 | 275 | 6.13 | 4.5 | 4.94 | 2.5 | 1.56 | 1.06 | 0.25 | 0.88 |
| TL025501 | 1 1/8"-1 1/4" | 400 | 7 | 5.13 | 5.88 | 2.88 | 1.81 | 1.31 | 0.25 | 1.13 |
| TL025502 | 1 1/4"-1 1/8" | 817 | 9.06 | 6.5 | 6.81 | 3.5 | 2.19 | 1.44 | 0.38 | 1.13 |
| TL025503 | 1 3/8"-1 1/2" | 1175 | 9 | 6.25 | 7.13 | 3.5 | 2.56 | 1.56 | 0.5 | 1.13 |
| TL025504 | 1 5/8" | 1700 | 11.25 | 8 | 8.13 | 4 | 2.72 | 1.72 | 0.5 | 1.38 |
| TL025505 | 1 3/4" | 1775 | 12.19 | 9 | 8.5 | 4.5 | 2.84 | 1.84 | 0.5 | 1.31 |
| TL025506 | 1 7/8"-2" | 2500 | 15.13 | 12 | 10.38 | 6 | 3.09 | 2.09 | 0.5 | 1.5 |
| TL025507 | 2 1/4" | 3950 | 17.13 | 14 | 11.88 | 7 | 3.63 | 2.38 | 0.63 | 1.63 |
