DIN3093 Aluminium Wire Rope Ferrules, Aluminum Crimps Cable Clamp Crimping Sleeve 0.5mm - 26mm

Share to:

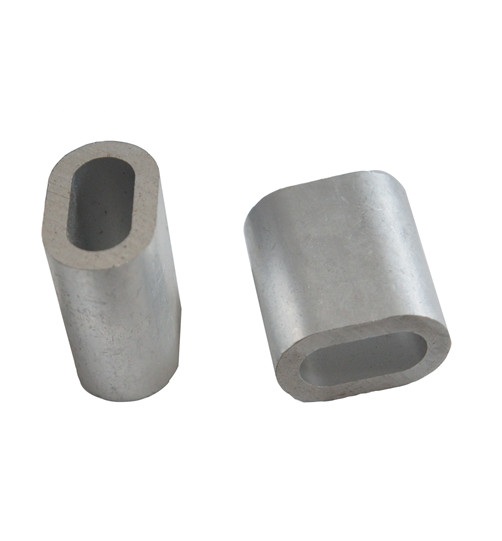

DIN3093 Aluminium Wire Rope Ferrules, Aluminum Crimps Cable Clamp Crimping Sleeve 0.5mm - 26mm

Material: Aluminum
Shape: Oval / Single Hole
Sizes: M1 - M60
Aluminium ferrules manufactured to conform to EN13411-3.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Aluminum Wire Rope Ferrules Crimping Sleeve Steel Metal Wire Rigging Clamp

Feature:

Flat section, no burrs, no injury to hands, thick aluminum sleeve, sturdy and durable, easy to deform and tightly integrated with steel wire rope

Used to fix steel wire ropes, and can also be used to fix the ends of the steel wire ropes to prevent the wire ropes from loose strands.

Aluminum ferrule

Size	A	B	S	L	Weight
mm	mm	mm	mm	mm	g/pc
1	1.2	2.4	0.65	5	0.11
1.5	1.7	3.4	0.75	6	0.21
2	2.2	4.4	0.85	7	0.24
2.5	2.7	5.4	1.05	9	0.5
3	3.3	6.6	1.25	11	0.84
3.5	3.8	7.6	1.5	13	1.32
4	4.4	8.8	1.7	14	1.81
4.5	4.9	9.8	1.9	16	2.61
5	5.5	11	2.1	18	3.57
6	6.6	13.2	2.5	21	5.86
6.5	7.2	14.4	2.7	23	7.85
7	7.8	15.6	2.9	25	9.53
8	8.8	17.6	3.3	28	13.7
9	9.9	19.8	3.7	32	19.8
10	10.9	21.8	4.1	35	26.4
11	12.1	24.2	4.5	39	35.8
12	13.2	26.4	4.9	42	45.8
13	14.2	28.4	5.4	46	59.7
14	15.3	30.6	5.8	49	73.5
16	17.5	35	6.7	56	111
18	19.6	39.2	7.6	63	159
20	21.7	43.4	8.4	70	217
22	24.3	48.6	9.2	77	292
24	26.4	52.8	10	84	376
26	28.5	57	10.9	91	481
28	31	62	11.7	98	603
30	33.1	66.2	12.5	105	735
32	35.2	70.4	13.4	112	897
34	37.8	75.6	14.2	119	1082
36	39.8	79.6	15	126	1275
38	41.9	83.8	15.8	133	1503
40	44	88	16.6	140	1734
42	46.2	92.4	17.5	147	2024
44	48.4	96.8	18.3	154	2314
46	50.6	101.2	19.2	161	2662
48	52.8	105.6	20	168	3010
50	55	110	20.8	175	3412
52	57.2	114.4	21.6	182	3813
54	59.4	118.8	22.5	189	4293
56	61.6	123.2	23.3	196	4772
58	63.8	127.6	24.2	203	5430
60	66	132	25	210	5617
