American Standard Synthetic Webbing Sling ASME/ANSI B30.9

Material: 100% tenacity Polyester
Safety Factor: 5:1, 7:1
Standard: ASME/ANSI B30.9 Class 5&Class 7
Label and logo: Customized

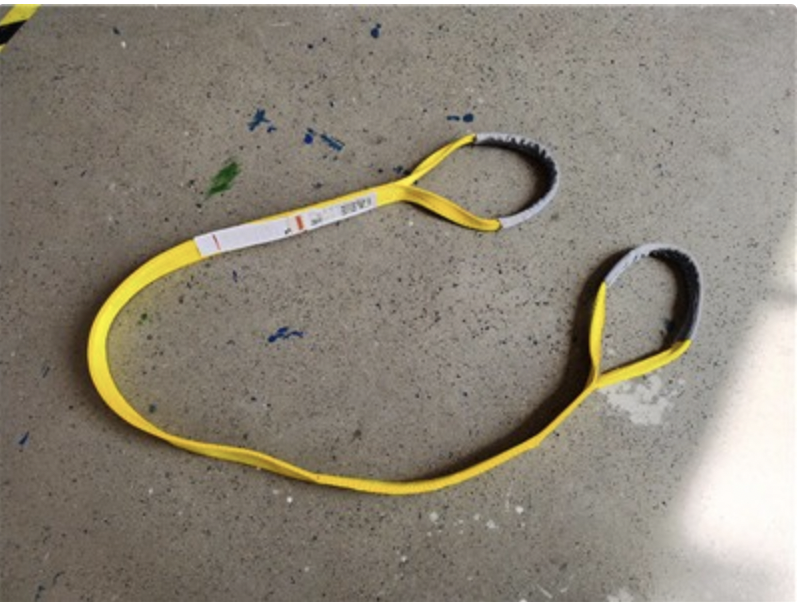

Double Layer synthetic webbing sling ASME/ANSI B.30.9

Made of soft,flexible material that grip and mold to the shape of irregular loads.

DOUBLE PLY EYE AND EYE WEBBING SLING CLASS 5
WEBBING WIDTH	VERTICAL	CHOCKER	VERTICAL BASKET	60° BASKET	45° BASKET	30° BASKET	MBS
INCH	LBS	LBS	LBS	LBS	LBS	LBS	LBS
1	2200	1760	4400	3811	3111	2200	11000
1-1/2	3300	2640	6600	5716	4667	3300	16500
1-3/4	3800	3040	7600	6582	5374	3800	19000
2	4400	3520	8800	7621	6222	4400	22000
3	6600	5280	13200	11432	9333	6600	33000
4	8200	6560	16400	14203	11595	8200	41000
5	10200	8160	20400	17667	14423	10200	51000
6	12300	9840	24600	21304	17393	12300	61500

Class 5 means rated loads are based on a stuffer weave construction webbing possessing a minimum certified tensile strength of 6800lb/winch width

DOUBLE PLY EYE AND EYE WEBBING SLING CLASS 7
WEBBING WIDTH	VERTICAL	CHOCKER	VERTICAL BASKET	60° BASKET	45° BASKET	30° BASKET	MBS
INCH	LBS	LBS	LBS	LBS	LBS	LBS	LBS
1	3100	2480	6200	5370	4383	3100	15500
1-1/2	4700	3760	9400	8141	6646	4700	23500
1-3/4	5400	4320	10800	9353	7636	5400	27000
2	6200	4960	12400	10739	8767	6200	31000
3	8800	7040	17600	15242	12444	8800	44000
4	11000	8800	22000	19052	15554	11000	55000
5	13700	10960	27400	23729	19372	13700	68500
6	16500	13200	33000	28578	23331	16500	82500
8	22750	18200	45500	39403	32169	22750	113750
10	28400	22720	56800	49189	40158	28400	142000
