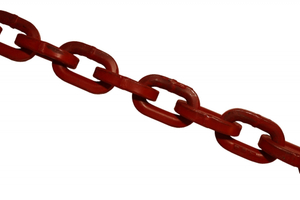

AS4344 GRADE 70 TRANSPORT CHAIN
Meets the latest revision of Australian Standard 4344
Designed for use in the transport industry for cargo restraint
Quenched and tempered, proof tested
Design factor 4 : 1
Yellow chromated zinc plated finish
WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS !
NOT FOR OVERHEAD LIFTING
Chain Size | Inside Length | Width | Min. Breaking Strength | Lashing Capacity | Weight | ||
D | L | B | b | ||||
max. | min. | max. | min. | ||||
mm | mm | mm | mm | mm | kN | kg | kg/m |
6 | 18.90 | 17.33 | 22.05 | 7.88 | 44.1 | 2,300 | 0.81 |
7 | 21.30 | 19.53 | 24.85 | 8.88 | 55.9 | 2,900 | 1.09 |
7.3 | 24.00 | 22.00 | 26.60 | 10 | 58.9 | 3,000 | 1.16 |
8 | 24.00 | 22.00 | 28.00 | 10 | 73.6 | 3,800 | 1.42 |
10 | 30.00 | 27.50 | 35.00 | 12.5 | 118.0 | 6,000 | 2.22 |
13 | 39.00 | 35.75 | 45.50 | 16.25 | 176.0 | 9,000 | 3.75 |
