TL051061
TL

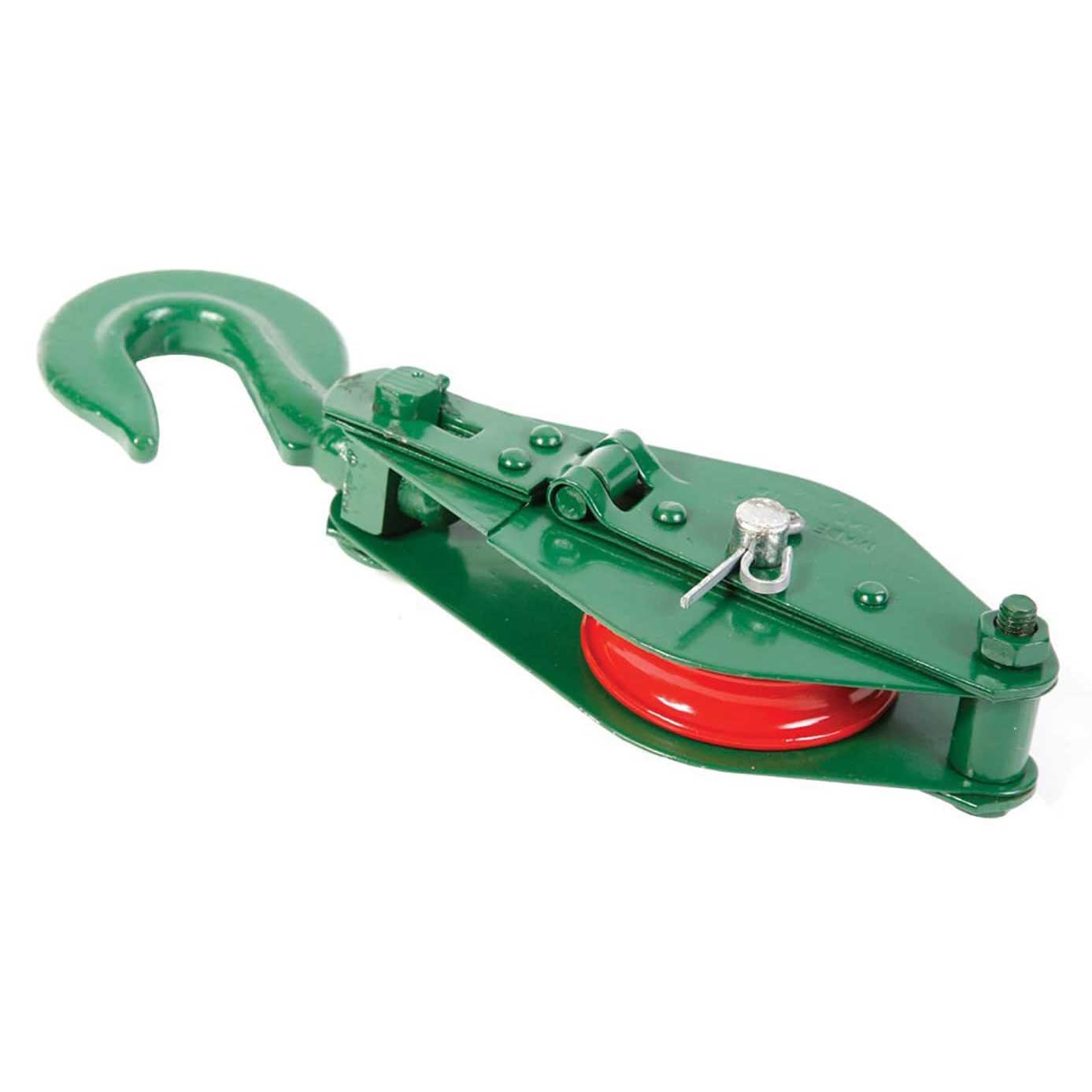

Single Sheave Snatch block
It is designed for use guiding rope or cable
It is easy to use, versatile, manual lifting equipment, are used in the factories, mines, agriculture, production of electricity, building contruction, dock ships, warehouses, machine installation, cargo lifting and so on.
TYPE | S.W.L | SHEAVE DIA | DIMENSIONS(mm) | FOR WIRE DIA | NW | ||||
HOOK | EYE | (t) | D(mm) | HOOK A1 | EYE A2 | B | C | (mm) | (kg) |
75DYx1S | 75DYx1SO | 0.5 | 75 | 286 | 227 | 87 | 50 | 8 | 1.6 |
100DYx1S | 100DYx1SO | 1 | 100 | 311.5 | 284.5 | 112 | 55.5 | 10 | 3.5 |
125DYx1S | 125DYx1SO | 1.5 | 125 | 370 | 344 | 140 | 63.5 | 13 | 4.6 |
150DYx1S | 150DYx1SO | 2 | 150 | 442.5 | 417 | 168 | 101 | 16 | 7.7 |
180DYx1S | 180DYx1SO | 3 | 180 | 498 | 478 | 204 | 107 | 19 | 11 |
200DYx1S | 200DYx1SO | 4 | 200 | 590.5 | 556 | 226 | 128 | 22 | 19.3 |
250DYx1S | 250DYx1SO | 5 | 250 | 590.5 | 651 | 276 | 147 | 25 | 33.8 |
300DYx1S | 300DYx1SO | 6 | 300 | 795 | 775 | 330 | 162 | 26 | 48 |
350DYx1S | 350DYx1SO | 10 | 350 | 934 | 898 | 395 | 178 | 28 | 66 |
